What Is The Main Function Of Transformer Clamp?

When designing reliable power infrastructure, small mechanical components often determine system longevity. Electrical engineers frequently scrutinize the structural elements holding massive electrical assemblies together. This guide focuses specifically on the structural transformer clamp. We focus on mechanical bracing, which remains entirely distinct from clamp meters used for measurement. A transformer is only as reliable as its internal structural integrity. General-purpose metal fasteners simply cannot withstand decades of intense thermal expansion. They fail under continuous electromagnetic vibration and extreme short-circuit forces. These clamps act as active risk-mitigation assets rather than passive metal straps. You will learn how they dictate noise control, prevent internal shifting, and safeguard overall infrastructure reliability. We will also cover proper material selection, critical engineering features, and technical sizing criteria. These practical engineering insights will help you make highly informed, long-lasting procurement decisions.

Key Takeaways

• Core Stability: The main function of a transformer clamp is to secure the iron core laminations, maintaining magnetic circuit stability and preventing internal displacement.

• Vibration & Noise Reduction: High-quality clamps apply precise, uniform pressure to minimize magnetostriction, the primary cause of transformer humming and mechanical wear.

• Short-Circuit Resilience: During electrical faults, clamps bear massive, sudden electromagnetic forces, preventing catastrophic core separation.

• Procurement Consideration: Material choice (mild steel, galvanized, or stainless) and precision engineering (single-point grounding, epoxy insulation) are critical criteria for evaluating vendor reliability.

The Primary Functions of a Transformer Clamp in Power Systems

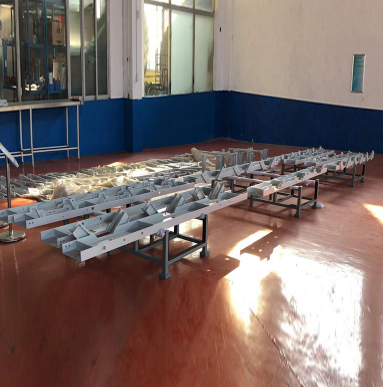

Power transformers rely heavily on precise internal mechanical alignment. Securing the iron core and its laminations ranks as the most critical duty. The clamp acts as the primary structural skeleton for the entire assembly. Manufacturers usually position these heavy components at the top and bottom of the core. Thick steel tie rods connect them securely across the unit. They maintain the exceptionally tight packing of CRGO (Cold Rolled Grain Oriented) steel laminations. This tight packing ensures a highly efficient, uninterrupted magnetic path. Any microscopic air gaps between laminations immediately reduce electrical efficiency.

Next, consider mechanical load bearing and electromagnetic forces. The clamp supports the massive physical weight of the core and copper coils. This structural support enables safe lifting and transportation from the factory to the installation site. Internal shifting during transit becomes highly unlikely when properly secured. Furthermore, transformers face immense, instantaneous electromagnetic expansion forces during short-circuit events. A robust clamp resists these violent outward forces directly. It prevents catastrophic mechanical separation when electrical faults occur. Without this rigid bracing, the core could literally tear itself apart in milliseconds.

Finally, vibration damping and noise mitigation require strict engineering attention. Magnetic materials expand and contract slightly under alternating magnetic fields. Engineers call this continuous physical phenomenon magnetostriction. The clamp counteracts magnetostriction effectively by applying constant, calculated compression. It translates direct mechanical clamping force into vastly reduced acoustic emissions. This noise reduction is absolutely critical for urban, residential, or indoor installations. Quiet, steady operation depends heavily on uniform pressure application across the entire core surface.

The Hidden Costs of Inferior Transformer Clamps (Risk Evaluation)

What happens when facilities install substandard hardware inside their power systems? Misalignment and uneven stress distribution occur frequently. Poorly machined tolerances lead directly to uneven compression across the core assembly. This mechanical imbalance forces magnetic flux into suboptimal, highly resistant paths. Core loss increases significantly as a direct result. Localized overheating then threatens the entire internal cooling system. The unit will eventually fail to meet its standard operational efficiency ratings.

Insulation failure via poor assembly represents another severe operational hazard. Assembly teams sometimes ignore proper torque wrench protocols during factory build-outs. Over-tightening can easily crush the internal core insulation layers. Conversely, under-tightening creates too much internal slack. This dangerous slack leads to excessive vibration during daily operation. The constant high-frequency movement slowly grinds away delicate insulation coatings. Short circuits inevitably develop over time as bare metal touches bare metal.

Corrosion drastically reduces the effective service life of the entire unit. Coastal areas and heavy industrial environments punish exposed metals constantly. Using low-grade, untreated steel accelerates rust formation at an alarming rate. Structural degradation of the internal frame threatens the expected lifespan of the asset. Most utility transformers should last 20 to 30 years under normal grid conditions. Substandard metals compromise this critical longevity entirely. We must remember that internal maintenance is notoriously difficult and expensive.

• Relying on manual feel instead of correctly calibrated torque wrenches.

• Skipping the installation of protective epoxy insulation pads.

• Choosing indoor-rated metals for fluctuating humidity environments.

• Failing to verify the single-point grounding connection before final tank sealing.

Key Evaluation Dimensions: Material Selection & Design Features

Choosing the correct base material ensures long-term operational success. Different geographic environments demand very specific metal treatments and alloys. We evaluate material options based on absolute durability and practical cost-efficiency.

Beyond base materials, critical engineering features dictate ultimate electrical performance. You must carefully look for a single-point grounding design. Core brackets must allow an earth connection at one point only. This specific design prevents dangerous circulating currents from forming. These currents would otherwise flow freely between the core and the metal frame. Circulating currents generate excessive heat and destroy energy efficiency.

Epoxy-coated insulation pads are equally vital to system health. These protective pads ensure the metal frame does not create unintended electrical bridges. Insulation maintains strict separation from the highly active magnetic circuit. Quality pads resist extreme thermal degradation and physical compression over time.

Finally, examine the specific hardware layout closely. Symmetrical bolt layouts provide immense structural value to the unit. They guarantee perfectly even pressure distribution across the yoke and limbs. Even pressure keeps the CRGO laminations tightly bound under wildly varying grid loads.

Technical Specifications & Sizing for Real-World Projects

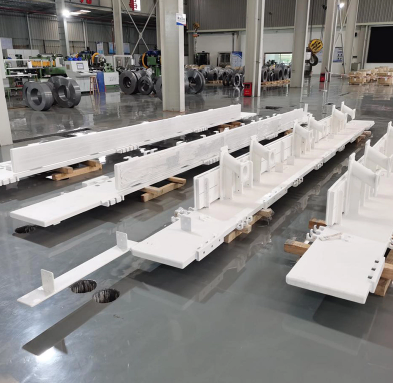

Matching the hardware type to the specific transformer geometry is absolutely essential. Most standard single and three-phase power units use simple rectangle configurations. These robust shapes provide straightforward, highly effective boundary support. Conversely, standing vertical transformers often utilize specialized Z-type clamps. Specific elongated assemblies require thin-profile rigidity to fit tight enclosure footprints. Z-type designs deliver excellent mechanical strength in these severely constrained spaces without blocking oil circulation.

Let us look directly at a practical blueprint perspective. Consider a typical 315kVA distribution transformer commonly used in commercial grids. This medium-sized core requires exceptionally robust clamping plates to remain structurally stable. Engineering drawings typically specify an 8mm plate thickness for adequate rigidity. High-tensile hardware, specifically M16 or M20 metric bolts, handles the intense compression requirements. They securely lock a 150-180mm lamination stacking thickness tightly together. Using standard grade bolts here would invite immediate failure under stress.

1. Always specify working temperature limits explicitly on your request forms. The hardware must withstand 120°C continuous operation without losing structural integrity.

2. Define exact mounting methods clearly on your final engineering drawings. Specify exactly whether joints require high-tensile bolting or specialized welding.

3. Match bolt torque specifications exactly to the specific core size. Document these torque values strictly for assembly line workers.

4. Account for thermal expansion coefficients when mixing different metals in the assembly stack.

These technical details separate highly reliable suppliers from inexperienced component vendors. You must demand precise CAD documentation before approving any final procurement contract.

Procurement Strategy: Validating Supplier Reliability

Sourcing reliable electrical components requires incredibly strict vendor validation protocols. Assessing manufacturing tolerances is your absolute first critical step. Always request detailed quality documentation regarding their CNC machining accuracy. A precision fit remains completely non-negotiable for dependable final assembly. Loose manufacturing tolerances will cascade into massive vibration issues later in operation.

Next, evaluate long-term performance and lifecycle stability thoroughly. Cheaper, general-purpose units introduce severe hidden risks. These hidden risks manifest quickly as unexpected maintenance interruptions and emergency grid outages. You should specify components based strictly on the specific environmental risk profile. Base your choices on guaranteed longevity rather than just initial capital expenditure. Reliable transformer clamp systems protect your broader infrastructure investments perfectly. Substandard hardware puts multimillion-dollar substations at severe operational risk.

Finally, take highly specific next-step actions before signing any long-term contracts. Audit your potential suppliers meticulously on their factory floors. Ask for verifiable material certifications directly from their steel mills. Check their protective coating application standards against current industry norms. Ensure they demonstrate a clear ability to customize dimensions quickly. They must adapt their hardware perfectly to your specific core stack arrangements. A flexible, high-precision vendor is an invaluable supply chain partner.

Conclusion

Structural bracing components are fundamental to overall mechanical safety. Magnetic efficiency in a power system relies entirely on solid internal compression. Evaluating component quality remains a highly effective way to vet suppliers comprehensively. Assessing material grades and insulation integration reveals a vendor's true engineering competence. Do not overlook these critical mechanical details during your next infrastructure procurement cycle.

• Review your current component specifications immediately to ensure adequate environmental corrosion resistance.

• Contact your engineering teams to verify custom sizing requirements for upcoming grid builds.

• Update internal assembly protocols to strictly mandate calibrated torque wrenches for all factory installations.

• Demand comprehensive material test reports from all prospective hardware partners before finalizing orders.

FAQ

Q: What is the difference between a transformer clamp and a CT clamp?

A: A structural transformer clamp is a mechanical piece of hardware that holds a power transformer's core together. A CT clamp (Current Transformer clamp) is an electrical sensor used to measure AC current passing through a wire without making physical contact.

Q: Can transformer clamps conduct electricity?

A: While made of conductive metals, they are purely mechanical components in function. They are specifically insulated from the active core using epoxy pads and single-point grounding to prevent them from becoming part of the electrical circuit.

Q: Why is a torque wrench necessary when installing transformer clamps?

A: Tightening bolts by feel is a major risk. A torque wrench ensures exact pressure; too loose causes destructive vibration and noise, while too tight can crush the core's delicate insulation layers.

Q: What materials are best for outdoor transformer clamps?

A: Galvanized steel is the industry standard for outdoor use due to its rust resistance. For extreme environments like offshore wind or chemical plants, 304 or 316 stainless steel is required.
