What Is The Core Of A Distribution Transformer?

Energy infrastructure relies heavily on unseen components working flawlessly behind the scenes. A facility's base operational costs largely stem from these hidden structural choices. The primary magnetic assembly remains energized continuously. It stays active regardless of the actual electrical load you draw. Therefore, it acts as the sole source of constant no-load iron losses.

Incoming regulatory shifts, including the stringent DOE 2028 efficiency standards, force procurement teams to adapt quickly. Engineers must urgently re-evaluate their equipment selections to stay compliant and competitive. This guide unpacks crucial materials and intricate engineering trade-offs. We explore the distinct differences between core-type and shell-type designs.

We also highlight key evaluation criteria for your next purchase. We will help you balance upfront capital expenditure against long-term lifecycle performance safely. By understanding these specific inner workings, you can make smarter, more reliable procurement decisions for your grid.

Key Takeaways

• The distribution transformer core acts as a high-permeability pathway that focuses and amplifies magnetic flux, directly dictating the unit's energy coupling efficiency.

• Material selection is a primary cost lever: Cold-Rolled Grain-Oriented (CRGO) silicon steel remains the industry standard, but amorphous metal cores are rapidly gaining market share to meet stricter modern efficiency mandates.

• Limb configuration matters: 5-limb cores have become the standard for modern distribution to safely route zero-sequence magnetic flux and prevent tank overheating in common Wye-Wye (Y-Y) configurations.

• Design Trade-offs: Optimizing a core requires balancing lamination thickness (to prevent eddy currents) against manufacturing costs and mechanical durability.

The Function of a Distribution Transformer Core: Translating Physics to ROI

When an alternating electrical current enters the primary winding, it immediately creates a magnetic field. Without a physical structure to guide it, this magnetic flux scatters outward. It dissipates into the surrounding air instantly. This uncontrolled dispersion causes massive energy coupling loss. To prevent this, the distribution transformer core steps in as the central mediator. It provides a continuous, incredibly low-reluctance path for the magnetic field. You can think of it as an isolated, high-speed highway. It links the primary coils to the secondary coils highly efficiently.

We can break down this critical assembly into specific functional parts:

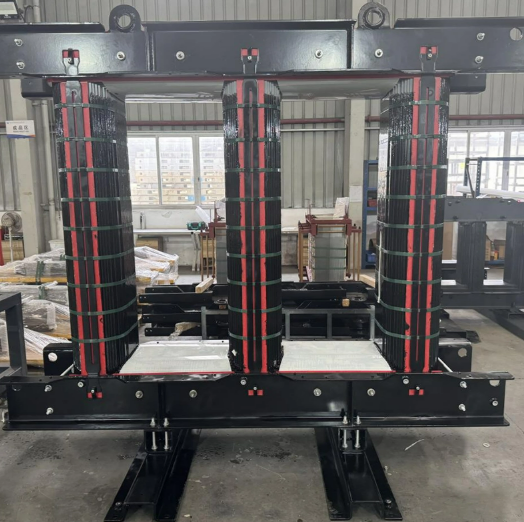

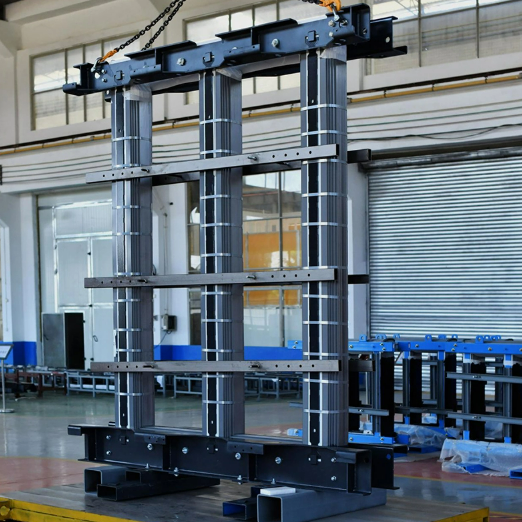

1. Limbs (Legs): These form the vertical columns of the unit. Manufacturers wind the heavy copper or aluminum coils directly around them. The diameter and shape of these limbs dictate the overall window space available for the windings.

2. Yokes: These horizontal pieces securely connect the top and bottom of the vertical limbs. They complete the closed magnetic loop. This ensures the flux travels in an uninterrupted circuit.

Continuous operation brings continuous financial impact. Core losses happen constantly. These persistent iron losses consist of two main phenomena: hysteresis and eddy currents. Hysteresis represents the internal molecular friction within the metal itself. As the alternating current changes direction repeatedly, the magnetic domains within the steel must flip. This internal friction generates heat. Eddy currents form induced circulating electrical loops within the conductive metal. Because these two losses occur without pause, optimizing your hardware efficiency becomes your strongest lever against long-term idle energy waste.

Structural Approaches: Core-Type vs. Shell-Type Designs

Engineers must align the physical architecture with specific application stress. You generally choose between two primary build approaches when specifying equipment.

The core-type configuration features external windings that surround the internal iron structure. It essentially uses one central magnetic circuit encased by two separate coils. Manufacturers intentionally place the low-voltage windings closest to the inner metal. This specific placement heavily optimizes insulation requirements. It also minimizes overall material usage for the higher-voltage components placed on the outside. The simpler manufacturing process makes this design highly cost-effective. It also dismantles easily when technicians need to perform internal maintenance. Excellent natural cooling characteristics make it the go-to standard for standard utility power distribution. You will see this setup frequently in commercial retail networks and residential neighborhoods.

Conversely, the shell-type configuration flips this layout completely. Here, the heavy metal structure surrounds and protects the inner windings. Two outer iron halves safely encase a central coil unit. Builders often employ a low-high-low winding arrangement inside the shell. This provides exceptional mechanical strength to the entire unit. It delivers superior short-circuit resistance and inherently prevents flux leakage. Heavy industrial environments absolutely require this level of mechanical resilience. Facilities highly susceptible to extreme grid surges or nearby lightning strikes also rely heavily on shell-type builds.

Advanced winding techniques further protect the equipment from damage. Interlacing drastically reduces secondary inductance. Standard non-interlaced designs often struggle during unexpected grid surges. The voltage spikes can easily damage the internal insulation layers. Interlaced arrangements force the currents to counteract each other. This protects the delicate inner insulation from catastrophic voltage spikes.

Here is a detailed comparison chart highlighting the operational differences:

Material Selection: Balancing Compliance, Cost, and Efficiency

Raw metals dictate both immediate capital expenditure and future regulatory compliance. Engineers must evaluate these materials carefully.

Cold-Rolled Grain-Oriented (CRGO) silicon steel dominates the current utility market. Manufacturers first cold-roll the raw steel to increase its structural yield strength. Next, they anneal it in large furnaces to remove microscopic impurities. Finally, they orient the metallic grain to align the crystalline structure perfectly. This exact orientation boosts flux density capacity dramatically. It handles roughly 30% more magnetic flux than standard non-oriented steel. CRGO delivers high reliability and rigid structural integrity. It represents the most cost-effective upfront capital expenditure option available today. Most legacy infrastructure relies entirely on this proven material.

However, sweeping regulatory shifts are pushing the market forward rapidly. Amorphous and nanocrystalline materials are gaining momentum across all sectors. Foundries manufacture these unique components from a rapidly cooled metallic glass alloy. This extreme cooling process prevents any distinct crystalline structures from forming. The resulting material boasts extremely low hysteresis. It essentially eliminates significant eddy current loops before they start. This drastically reduces idle energy waste across the entire power grid.

You must carefully evaluate these benefits against higher upfront costs. Amorphous metals cost noticeably more initially. Yet, they are fast becoming a strategic necessity. Upcoming Department of Energy (DOE) efficiency standards demand drastically lower losses. High-energy-cost regions require them for viable operational returns. Procurement teams must look past the initial price tag to see the long-term utility value.

Engineering Variables That Impact Core Performance

A functioning unit relies on subtle but vital engineering choices. Leg quantity and joint assembly significantly alter operational safety and noise output.

Limb configurations matter immensely for grid stability. Older 3-limb versions pose significant operational risks in standard Wye-Wye (Y-Y) electrical setups. They lack a dedicated, safe return path for unbalanced zero-sequence flux. When unbalanced loads occur, the rogue magnetic flux must find an alternative route immediately. It forces its way out through the air gap and into the exterior steel tank. This causes severe, localized overheating. Prolonged exposure can lead to catastrophic oil degradation and equipment failure.

The 5-limb solution cleanly prevents this disaster. Engineers add two outer unwound metal legs to the assembly. These provide a safe, highly conductive return path for any rogue magnetic flux. They completely prevent tank heating by keeping the magnetic field contained. Consequently, 5-limb designs serve as the default safety standard for modern power networks.

Lamination thickness also forces a delicate manufacturing compromise. The internal structure is never a single solid block of metal. It utilizes hundreds of highly compressed, ultra-thin steel sheets. Factories coat these sheets with microscopic oxide layers or special insulating varnish. This insulation breaks up potential electrical conduction paths. Thinner laminations reduce eddy currents highly effectively. However, they exponentially increase factory assembly time and overall manufacturing costs. You must weigh the efficiency gains against the delayed production timelines.

Joint construction finishes the complex magnetic loop. Manufacturers utilize step-lap mitred joints exactly where the horizontal yokes meet the vertical limbs. This specific angled cut prevents magnetic flux bottlenecks at the corners. It smooths the transition for the magnetic field. More importantly for residential areas, it greatly reduces the familiar operational hum you hear near outdoor substations.

Procurement Checklist: Evaluating Core Implementations and Risks

Sourcing high-voltage equipment requires careful technical scrutiny. Use the following criteria to evaluate vendor implementations and mitigate your operational risks:

• Thermal Management and Sizing Constraints: Highly efficient materials often require larger physical dimensions to operate safely. Amorphous units might not fit into your legacy vault retrofits or standard concrete pad-mount footprints. Always verify your precise spatial constraints before approving a purchase order.

• Operating Near Magnetic Saturation: A well-designed unit operates just below its absolute magnetic saturation point. Pushing the metal into saturation wastes massive amounts of energy instantly. It also generates dangerous, excessive heat inside the enclosure. Ensure your vendor specifications account for local grid overvoltage scenarios to prevent saturation during surges.

• Stray Loss Mitigation: Look closely for manufacturers who intentionally utilize non-magnetic clamping structures. Ferrous bolts and steel fasteners can inadvertently create localized eddy currents. This leads to premature insulation degradation and eventual arc faults. Stainless steel or composite fasteners eliminate this specific threat entirely.

• Lead Times and Supply Chain Realities: Factor in the current global market environment. High-grade amorphous alloys often carry much longer manufacturing lead times. Factories require specialized tooling to cut and stack the brittle material safely. Traditional CRGO silicon steel remains much faster to source and deploy for emergency replacements.

Conclusion

The chosen magnetic structure defines the long-term viability of your electrical infrastructure. As grid demands evolve, so do the technical requirements for these critical components. Keep the following action-oriented takeaways in mind when planning your upgrades:

• Match the physical structure to the environmental stress: Choose core-type builds for standard commercial networks. Specify shell-type builds for heavy industrial environments facing continuous grid surges.

• Prioritize future-proof raw materials: While traditional CRGO steel remains highly reliable, amorphous alloys offer the distinct efficiency upgrades needed to meet strict incoming energy mandates.

• Demand safety in your limb design: Always specify modern 5-limb configurations for Wye-Wye setups. This eliminates external tank heating and ensures perfectly safe flux routing.

• Inspect the internal hardware choices: Request non-magnetic clamping systems on your spec sheets. This simple choice prevents stray losses and protects your internal insulation over the coming decades.

Your next step is to demand comprehensive lifecycle loss models from potential vendors. Ask them to calculate continuous iron losses over a 20-to-30-year operational lifespan. Evaluate these energy figures against local utility rates and spatial sizing constraints. Avoid making major infrastructure decisions based solely on the initial purchasing price. This holistic approach ensures a highly resilient, highly efficient grid deployment.

FAQ

Q: Why is the core of a distribution transformer laminated rather than solid?

A: A solid structure allows massive, uncontrolled circulating electrical currents induced by alternating magnetic fields. These eddy currents lead to rapid overheating and catastrophic energy loss. Lamination divides the metal into thin, insulated sheets. This completely breaks the electrical conduction path while perfectly maintaining the necessary magnetic path.

Q: What is the difference between iron losses and copper losses?

A: Iron losses occur constantly as long as the equipment remains energized. They happen regardless of the connected electrical load. Copper losses vary directly based on the actual load demand passing through the internal windings. Iron losses represent fixed idle waste, while copper losses scale with your real-time usage.

Q: How does a 5-limb core prevent transformer tank overheating?

A: Unbalanced loads create residual magnetic flux that requires a safe return path. A 3-limb setup forces this flux into the external steel tank, causing dangerous heat buildup. A 5-limb configuration adds two outer, unwound metal legs. These legs safely route stray flux, preventing it from interacting with the external metallic enclosure.
