Product Introduction
| Model NO. | B30P120 |

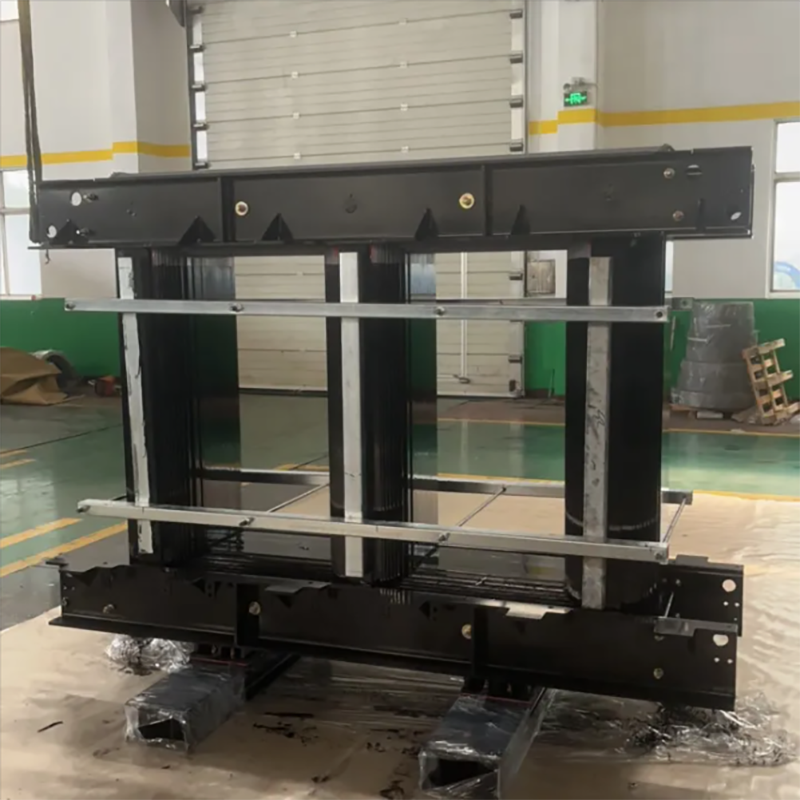

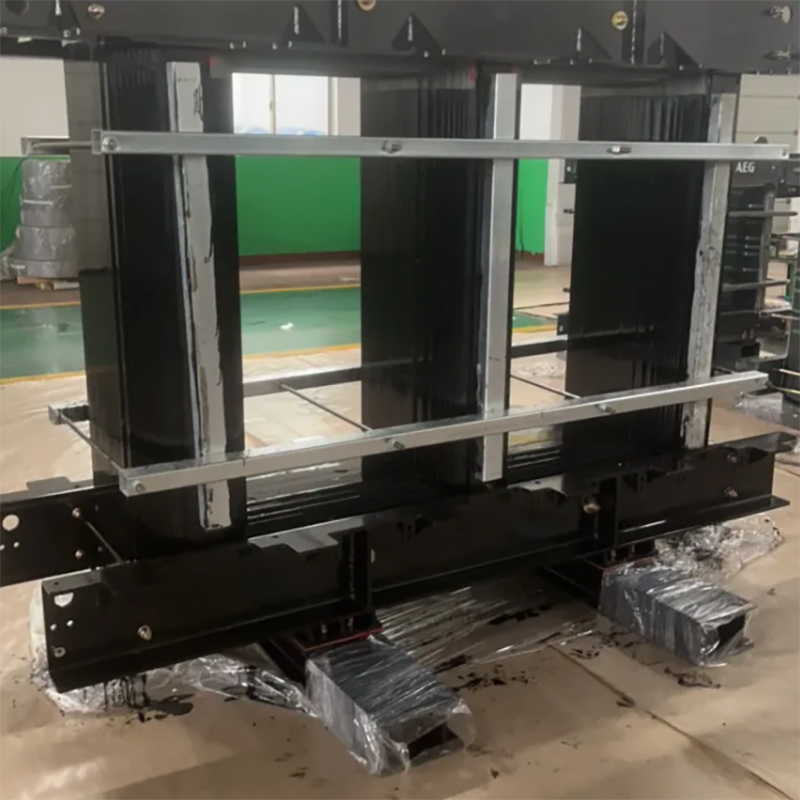

| Shape | Transformer Core |
| Sheet Width | 35-1060mm |
| Certification | ISO9001,14001,45001 |
| Specification | According to drawing |
| Origin | China |
| Production Capacity | 8000tons/Month |
Product Advantage
Max Weight of Manually Stacked Core: 120 Ton
Gap Limit at the Joint: <1.0mm
Window Height Precision: ±1mm
Window Width Precision: ±1mm
With precision and care, we compute and refresh the quotation tailored to your detailed drawings, ensuring both supreme accuracy and cost-efficiency.Upon confirmation, we embark on production following your comprehensive drawings to ensure meticulous compliance with your specific requirements.
Oriented silicon steel is a top-tier low-carbon silicon iron alloy, enriched with 0.5% to 4.5% silicon content. Celebrated for its exceptional permeability, it dramatically diminishes Joule loss in power devices, thereby boosting efficiency and delivering remarkable energy savings. Additionally, it features minimized iron loss and a superior resistance coefficient.
Raw Material: CRGO silicon steel, carefully procured from distinguished suppliers Baosteel and WISCO, assuring quality and reliability.
Technical Parameters
| Type | Grade | Width | Max Core Loss@P1.7T/50Hz | Lamination Factor(%) | Min Induction@B800 |
| Common Type | 23Q110 | 35-1200mm | 1.10w/kg | 97.2 | 1.82T |
| 23Q120 | 1.20w/kg | 97.2 | 1.82T | ||
| 27Q120 | 1.20w/kg | 97.5 | 1.82T | ||
| 30G120 | 1.20w/kg | 98 | 1.82T | ||
| High Induction Type | B20P085 | 35-1200mm | 0.85w/kg | 97 | 1.86T |
| B23P085 | 0.85w/kg | 97.2 | 1.88T | ||
| B23P090 | 0.90w/kg | 97.2 | 1.88T | ||
| B23P095 | 0.95w/kg | 97.2 | 1.88T | ||
| B23P100 | 1.00w/kg | 97.2 | 1.88T | ||
| B27P095 | 0.95w/kg | 97.5 | 1.89T | ||
| B27P100 | 1.00w/kg | 97.5 | 1.89T | ||
| B30P120 | 1.20w/kg | 98 | 1.89T | ||
| Domain Refined High Induction Type(Laser) | B20R070 | 35-1200mm | 0.70w/kg | 97 | 1.86T |
| B23R085 | 0.85w/kg | 97.2 | 1.88T | ||
| B27RK085 | 0.85w/kg | 97.5 | 1.89T |
Product Uses
Here are four specific application scenarios of packaging machinery:
Food and beverage packing: Packaging machines are used to package a variety of food products such as chips, candies, and cookies.
Pharmaceuticals: Packaging machines are used to package pharmaceutical products such as pills, tablets, and capsules.
Household goods: Packaging machines are used to package home products such as soaps, detergents, and cleaning supplies.
Industrial goods: Packaging machines are used to package industrial items such as machine parts, electrical components, and materials.
FAQ
1. Which products can we provide?
We offer CRGO mother coils, slit coils, transformer lamination, and OEM transformer cores.
2. Who are we?
Established in 2000, we are a pioneering force in CRGO silicon steel products in China, and the exclusive user of Bao-steel. Our joint laboratory with Bao-steel underscores our commitment to quality and innovation.
3.How can we guarantee quality?
We strictly adhere to ISO9001:2015 standards. Our engineers conduct meticulous calculations before order placement, and we rigorously test each product post-production to ensure peak quality before dispatch.
4. Why should you buy from us and not from other suppliers?
With over three decades of expertise in producing transformer cores, we leverage advanced German slitting and cutting systems, including the Georg 800 cross-cutting E-stack machine. Our impressive annual production capacity exceeds 100,000 tons.
