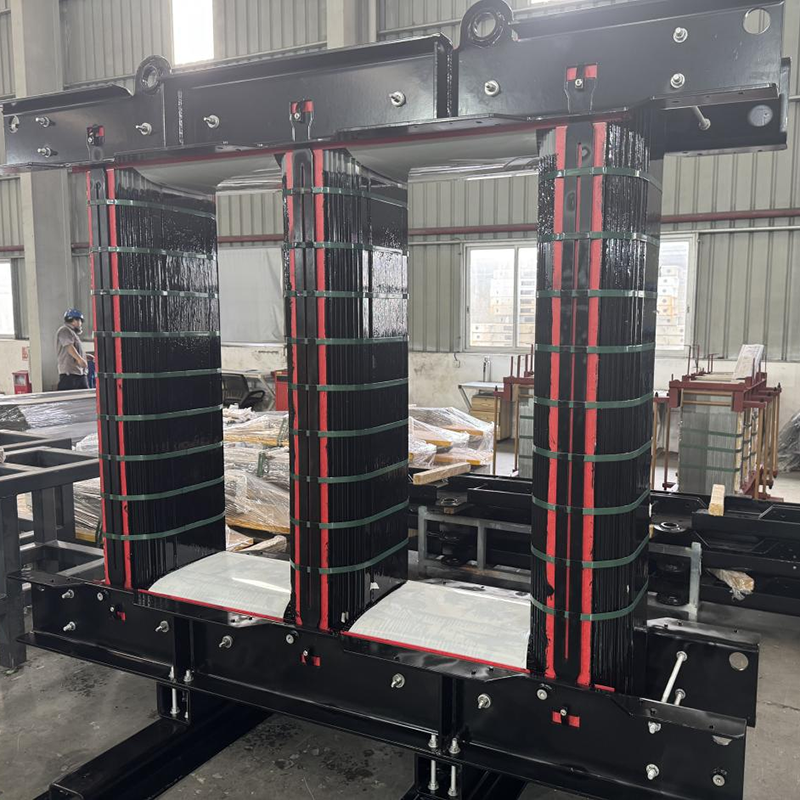

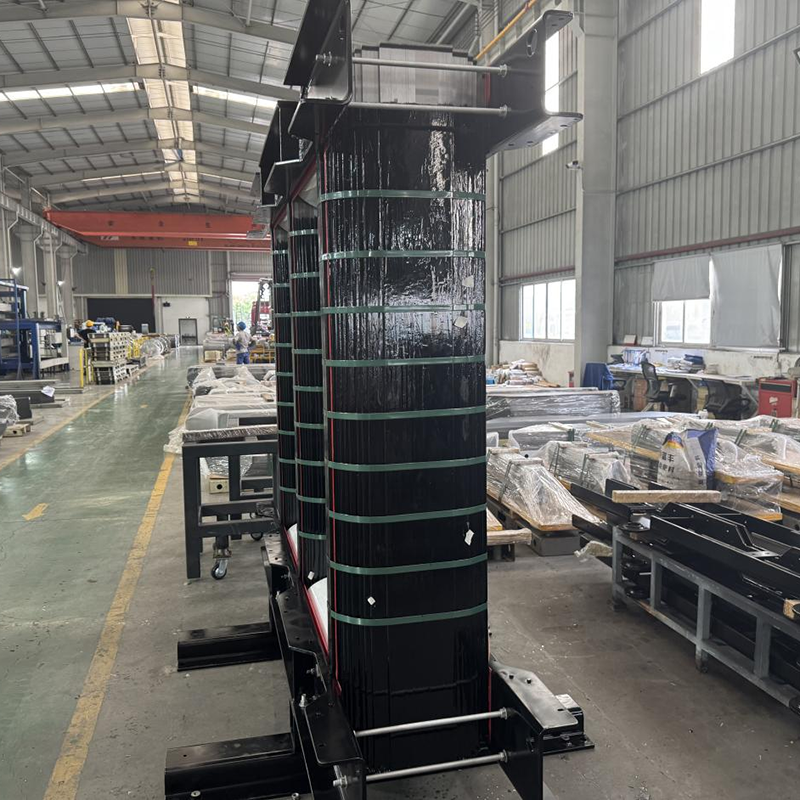

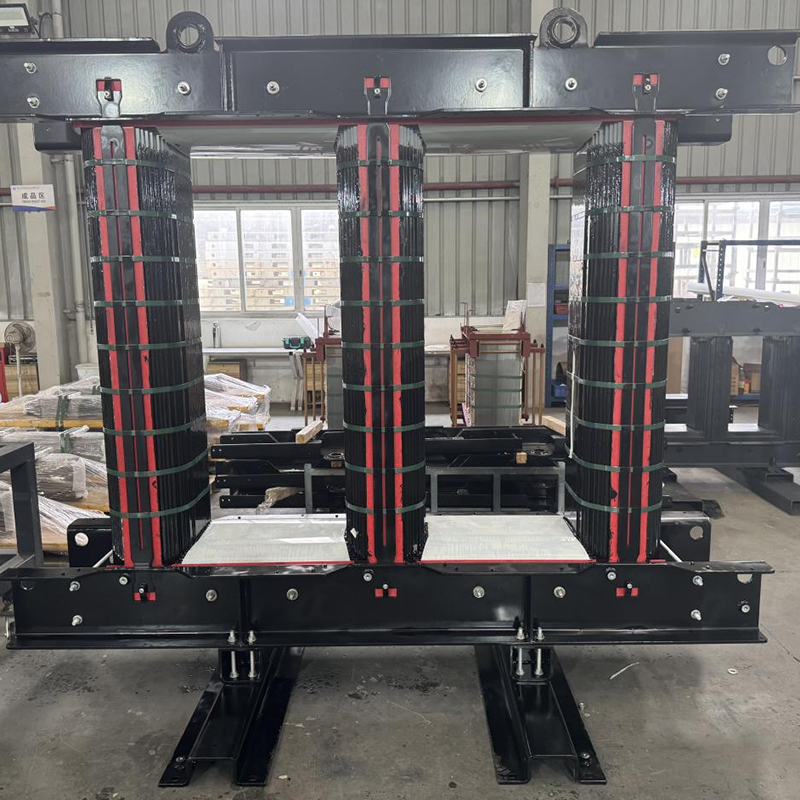

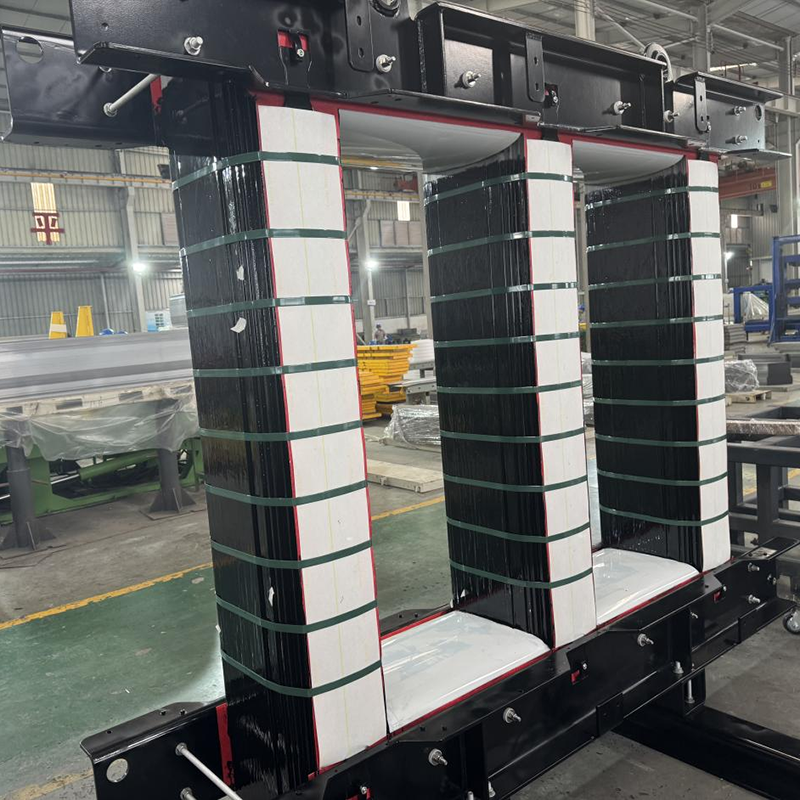

Transformer Core features:
A wide range of spece( from 5KVA-100MVA)
Material
Using high quality CRGO steels with low iron-loss and high permeability in thickness of 0.23mm, 0.27mm, 0.30mm. Laser CRGO the special electrical silicon steel for Power Transformer.
CHARACTERISTIC
Two halves matched together to get an open structure with closed magnetic circuit. The coil and core can be produced separately and assembled easily, so the total production time can be reduced.
High quanlity and reasonable price.
Applicable to all kinds of Power transformer. Widely used for 50Hz & 400Hz transformers, current transformers, reactors, chokes and other magnetic components of electronic equipment.
The customizable design is acceptable.
Based on credit,Qulity foremost and Expect to cooperate with you faithfully.
| Rated capacity(kva) | No-load loss(W) | Load loss | No-load current | Impedance voltage |
| 30 | 80 | 600/630 | 0.34 | 4 |
| 50 | 100 | 870/910 | 0.28 | 4 |
| 63 | 110 | 1040/1090 | 0.26 | 4 |
| 80 | 130 | 1250/1310 | 0.25 | 4 |
| 100 | 150 | 1500/1580 | 0.24 | 4 |
| 125 | 170 | 1800/1890 | 0.23 | 4 |
| 160 | 200 | 2200/2310 | 0.21 | 4 |
| 200 | 240 | 2600/2730 | 0.2 | 4 |
| 250 | 290 | 3050/3200 | 0.19 | 4 |
| 315 | 340 | 3650/3830 | 0.18 | 4 |
| 400 | 410 | 4300/4520 | 0.17 | 4 |
| 500 | 480 | 5150/5410 | 0.15 | 4 |
| 630 | 570 | 6200/6510 | 0.14 | 4.5 |
| 800 | 700 | 7500/7870 | 0.13 | 4.5 |
| 1000 | 830 | 10300/10800 | 0.12 | 4.5 |
| 1250 | 970 | 12000/12600 | 0.11 | 4.5 |
