Transformers are fundamental components of modern electrical systems, designed to efficiently convert voltage levels and facilitate reliable power transmission across grids and industrial networks. At the heart of every transformer lies the transformer core, which guides magnetic flux and ensures minimal energy loss. The design, material, and structure of the transformer core significantly influence the transformer’s efficiency, durability, thermal stability, and long-term performance.
Understanding the various types of transformer cores is essential for engineers, manufacturers, and energy professionals, as the selection impacts both operational reliability and energy efficiency. This article explores the different types of transformer cores, detailing their characteristics, advantages, applications, and the technical considerations behind their design.
The transformer core serves as a carefully engineered pathway for magnetic flux, effectively linking the primary and secondary windings. Its primary function is to conduct magnetic energy generated in the primary winding to the secondary winding with minimal loss. A transformer without an optimized core would experience substantial energy loss, excessive heat generation, and decreased operational efficiency, which could lead to frequent maintenance and higher operational costs.
A high-quality transformer core is constructed to achieve several critical objectives simultaneously:
Efficient energy transfer: Magnetic materials with high permeability allow the magnetic flux to flow smoothly with minimal resistance, ensuring effective voltage conversion and reducing wasted energy.
Minimizing energy losses: Well-engineered cores limit hysteresis and eddy current losses, which are common causes of inefficiency and overheating in transformers.
Mechanical and thermal stability: The core also provides structural support for the windings, maintaining alignment and reducing vibrations during operation.
When alternating current (AC) flows through the primary winding, it generates a time-varying magnetic field. The transformer core channels this magnetic flux through a continuous path, inducing a voltage in the secondary winding. For optimal performance, the core must exhibit high magnetic permeability, enabling the flux to travel with minimal opposition, and low hysteresis loss, ensuring that energy lost as heat is kept to a minimum. These factors not only improve the transformer’s efficiency but also contribute to stable operation under varying electrical loads and environmental conditions.
Additionally, the core’s geometry and material composition influence the magnetic flux distribution and energy density. Proper lamination, alignment, and material purity all play a critical role in ensuring that the transformer can operate reliably over extended periods while maintaining optimal performance.

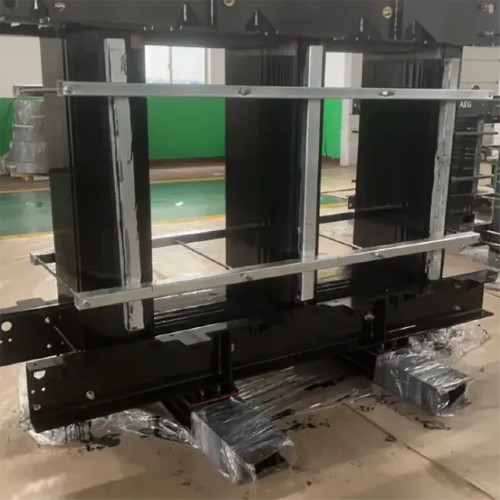

Core type transformers feature windings placed around the two vertical limbs of a rectangular magnetic core. The design allows magnetic flux to pass efficiently through the core limbs and the top and bottom yokes, creating a predictable and controlled magnetic path. This straightforward architecture has made core type transformers a standard solution in power distribution networks worldwide.
Simple and cost-effective design: The rectangular core structure simplifies manufacturing and reduces production costs.
High reliability: The magnetic flux path is straightforward, which minimizes potential energy loss points.
Ease of maintenance: The design allows easy access to windings for inspection or repair without disassembling the entire core.
Medium to large power distribution transformers.
Industrial transformers designed for stable operation under moderate loads.
Feature | Core Type Transformers |
Structure | Windings around core limbs |
Efficiency | Moderate |
Manufacturing | Simple and cost-effective |
Applications | Distribution and industrial transformers |
Shell type transformers differ from core type designs in that the core surrounds the windings, providing enhanced mechanical protection and more uniform flux distribution. The shell design ensures that the magnetic flux is confined to the core, reducing leakage and improving overall energy transfer efficiency.
Superior magnetic shielding: The enclosing core reduces magnetic flux leakage, improving efficiency and reducing interference with nearby devices.
Improved stability under load: The shell structure can better withstand short-term surges and thermal expansion without deformation.
Higher efficiency for large transformers: By minimizing leakage flux, shell type transformers maintain consistent voltage regulation under varying operating conditions.
Industrial transformers with high power demands.
Dry-type transformers in commercial and industrial facilities where safety and efficiency are paramount.
Feature | Shell Type Transformers |
Structure | Core surrounds windings |
Efficiency | High |
Magnetic Shielding | Excellent |
Applications | Industrial and dry-type transformers |
Toroidal cores are circular or donut-shaped, creating a continuous magnetic path that minimizes air gaps and leakage flux. This design allows magnetic flux to flow efficiently with very low resistance, which improves energy transfer and reduces heat generation.
Compact and space-saving: Toroidal cores require less physical space than rectangular cores, making them ideal for compact installations.
High efficiency: Minimal magnetic leakage and low hysteresis losses result in superior energy transfer.
Quiet operation: The continuous circular design reduces vibration and electromagnetic interference, which is important in noise-sensitive applications.
Small and medium power transformers.
Electronic devices, including switch-mode power supplies.
Renewable energy systems where compact, lightweight transformers are needed.
Feature | Toroidal Core Transformers |
Shape | Circular/Donut |
Efficiency | Very high |
Noise | Low |
Applications | Compact power, electronics, renewable inverters |

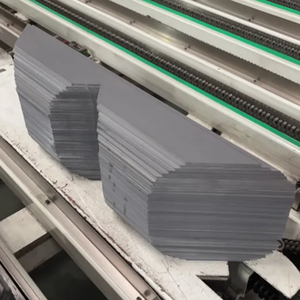

C-core and E-core transformers use laminations shaped like the letters C and E. These laminated designs are easy to manufacture, assemble, and maintain, allowing efficient production while maintaining high performance.
Efficient assembly: The modular design simplifies stacking and alignment of laminations.
Reduced material waste: Laminated construction allows precise control of material usage.
Good space utilization: Compact design enables integration into medium-voltage systems with limited space.
Dry-type medium-voltage transformers in industrial settings.
Systems requiring reliable performance and ease of maintenance.
Feature | C-Core / E-Core Transformers |
Structure | C-shaped or E-shaped laminations |
Efficiency | High |
Ease of Assembly | Excellent |
Applications | Medium-voltage and industrial transformers |
Amorphous cores are made from non-crystalline alloys that lack a regular atomic lattice. This structure reduces eddy current formation, which is a major source of energy loss in traditional transformer cores.
Extremely low core losses: Amorphous alloys reduce energy dissipation significantly compared to conventional silicon steel.
Lightweight: Easier to transport and install, especially for large-scale energy systems.
Eco-friendly: Often recyclable and aligned with sustainability goals.
Energy-efficient power transformers.
Green energy systems, including solar and wind applications.
Feature | Amorphous Core Transformers |
Material | Non-crystalline alloy |
Core Loss | Very low |
Weight | Lightweight |
Applications | Energy-efficient and renewable systems |
Nanocrystalline alloys are composed of extremely fine grains that give the core high magnetic permeability and excellent low-loss characteristics. These materials are ideal for applications that require both high efficiency and stability over a wide range of operating conditions.
Minimal hysteresis and eddy current losses enhance energy efficiency.
High thermal stability: Performs reliably even in fluctuating environmental conditions.
Compact design: Reduces size without compromising performance.
High-performance smart grid transformers.
Energy storage systems.
High-efficiency renewable energy transformers.
Feature | Nanocrystalline Core Transformers |
Material | Nanocrystalline alloy |
Efficiency | Extremely high |
Stability | High thermal stability |
Applications | Smart grids, energy storage, renewable energy |
Ferrite cores consist of iron oxide combined with ceramic compounds. They are optimized for high-frequency operations, making them ideal for electronic circuits and applications requiring low size and weight.
Excellent high-frequency performance: Suitable for modern electronics and switching power supplies.
Compact and lightweight: Reduces transformer size without sacrificing magnetic performance.
Low electromagnetic interference: Ferrite cores limit noise and interference in sensitive circuits.
Switch-mode power supplies (SMPS).
Electronic inverters and adapters.
High-frequency transformers in communication equipment.
Feature | Ferrite Core Transformers |
Material | Iron oxide & ceramic |
Frequency | High-frequency operations |
Size | Compact |
Applications | Electronics, inverters, SMPS |
Selecting the right transformer core is critical for achieving high efficiency, long-term reliability, and stable operation. Key considerations include:
Efficiency Requirements: Higher efficiency cores reduce operating costs and energy waste.
Voltage and Current Ratings: Determines appropriate core size, thickness, and material.
Frequency of Operation: High-frequency applications require ferrite or nanocrystalline cores.
Application Environment: Indoor vs. outdoor use, temperature variations, and mechanical stresses.
Mechanical and Thermal Stability: Proper lamination, clamping, and assembly prevent vibration, noise, and deformation.
A detailed evaluation ensures that the transformer core meets operational, environmental, and energy efficiency goals while maintaining long-term reliability.
Transformer cores are the heart of every transformer, directly influencing energy efficiency, stability, and long-term reliability. From core-type and shell-type to toroidal, C-core, E-core, amorphous, nanocrystalline, and ferrite cores, each design offers unique advantages tailored to specific applications and operational requirements. Selecting the right transformer core requires careful consideration of material properties, operating frequency, efficiency targets, and environmental conditions, ensuring optimal performance and minimal energy loss.
Advanced cores, such as amorphous and nanocrystalline alloys, are revolutionizing efficiency in renewable energy systems and smart grids, delivering higher energy savings and improved operational stability. For organizations or engineers seeking high-quality transformer cores, partnering with a professional and experienced manufacturer is crucial.
Foshan Huage Electric Power Equipment Co., Ltd. offers a comprehensive range of transformer cores, including customizable solutions, technical support, and rigorous quality assurance. Their expertise ensures reliable, energy-efficient transformers suitable for diverse industrial, commercial, and renewable energy applications. Engaging with Huage allows companies to enhance performance, reduce energy losses, and implement sustainable power solutions. For detailed information or professional consultation, contacting Huage is highly recommended.
