What Is A Transformer Clamp?

Navigating electrical hardware terminology often feels confusing on procurement floors. One specific term causes immediate industry ambiguity across engineering teams. A transformer clamp describes two completely different electrical components. You might need a mechanical structural clamp securing a laminated core. Or you might need a Current Transformer (CT) clamp measuring AC current non-invasively. We focus strictly on the latter. Choosing the right sensor dictates energy audit accuracy. It also ensures differential protection safety and dynamic load balancing efficiency in modern setups.

This guide clears up the terminology confusion immediately. We focus exclusively on these critical measurement sensors. We explore their underlying physics and industrial procurement criteria. You will discover how to evaluate, specify, and troubleshoot the perfect transformer clamp for your next project. Our comprehensive breakdown helps you avoid expensive field errors.

Key Takeaways

• Disambiguation: Understand whether your project requires a mechanical core clamp (to secure transformer laminations) or a CT clamp (to measure AC current).

• Mechanism limitations: Traditional CT clamps only measure Alternating Current (AC) using magnetic induction; they cannot measure DC without Hall-effect technology.

• Directionality matters: While clamp direction is irrelevant for simple AC current (Amps) measurement, reversing a CT clamp during power (Watts) measurement will cause a 180-degree phase shift and trigger nuisance tripping in protection circuits.

• Form dictates function: High-interference environments require permalloy cores, while densely wired distribution panels necessitate "sharp nose" or thin-jaw designs.

Defining the "Transformer Clamp": Sensor vs. Structural Component

Industry professionals frequently misuse terminology. This causes significant confusion during hardware procurement. You must separate the measurement sensor from the mechanical hardware. They serve completely different functions in electrical engineering. We outline the key distinctions below.

The Measurement Sensor (Current Transformer Clamp)

This component operates as a diagnostic or monitoring device. It features split jaws for easy installation. You clamp it around a live wire. It measures current via electromagnetic induction. You never have to break the circuit. This non-invasive approach ensures operator safety. It also guarantees continuous power delivery during testing.

Technicians deploy these sensors constantly. You will find them inside handheld multimeters. Facilities install them permanently for continuous energy monitoring. Modern electric vehicle chargers use them for dynamic load balancing. They represent a critical data-gathering tool.

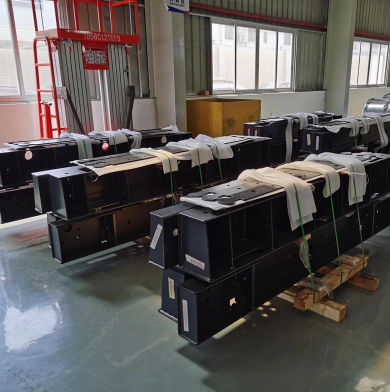

The Mechanical Hardware (Transformer Core Clamp)

This component acts as a structural fastening system. Manufacturers typically forge it from mild, galvanized, or stainless steel. It holds laminated transformer cores tightly together. These cores might be EI, UI, or wound configurations. The clamp maintains strict stacking density across the unit.

Proper fastening reduces magnetic flux leakage. It also minimizes magnetostriction-induced hum and vibration. Without these sturdy clamps, large transformers would shake themselves apart. They prevent severe mechanical failure in heavy power grids.

Writer Note: We transition seamlessly here. We focus exclusively on the CT Clamp for the remainder of this guide. This focus aligns perfectly with instrument and sensor procurement strategies.

The Physics of CT Clamps: How They Translate Current to Data

Understanding internal physics helps you troubleshoot complex field issues. These sensors rely on established electromagnetic principles. They do not magically read data. They translate physical forces into measurable electrical signals. We break down the exact mechanics below.

The Core Construction

Engineers build these clamps using specific internal materials. They hide rigid magnetic cores inside the plastic jaws. These cores typically consist of ferrite iron or specialized permalloy. Manufacturers wrap these internal cores in separate copper wire. We call this the secondary winding. The quality of this core dictates sensor accuracy.

The Induction Principle

These devices operate on a standard transformer relationship. The clamped live wire acts as your "primary winding." Current flows through this primary wire. It generates an alternating magnetic field. We call this magnetic flux. The iron core concentrates this flux. The flux then induces a proportional current inside the jaw's secondary winding.

The Turns Ratio

Math drives the final data output. The number of wire wraps determines the scaling factor. We call this the turns ratio. It scales massive industrial currents down to safe, readable levels.

• Example: A 1000:1 ratio means 1A in the primary wire produces 1mA at the meter input.

• Scaling: A 100A current load becomes a safe 100mA signal.

• Signal Output: Modern clamps typically output this converted data in easily readable mV or mA formats. Data loggers process these low-level signals instantly.

The AC Limitation

You must understand a severe standard constraint. These sensors rely entirely on alternating magnetic flux. The magnetic field must expand and collapse continuously. Standard models only respond to Alternating Current (AC) waveforms. They cannot detect Direct Current (DC). DC produces a static magnetic field. A static field induces zero current in the secondary winding. You need specialized Hall-effect technology for DC measurement.

Evaluation Criteria: Specifying CT Clamps for Industrial Procurement

Selecting the correct sensor prevents catastrophic data errors. You cannot simply buy the cheapest option. Industrial environments demand strict specification checks. You must evaluate materials, shapes, and signal formats. We outline the mandatory procurement criteria below.

Material and Interference Tolerance

Standard ferrite cores work fine for clean residential panels. Industrial environments tell a different story. They feature severe electromagnetic interference (EMI). Heavy motors and variable frequency drives distort standard readings. You must specify permalloy cores for these harsh environments. Permalloy offers extreme magnetic permeability. It maintains absolute measurement accuracy amidst chaotic electrical noise.

Physical Form Factor

You must evaluate jaw design carefully. Standard bulky jaws fail constantly in the field. Modern industrial control panels pack wires tightly together. Electricians struggle to fit thick sensors around single wires. Specify "thin jaw" or "sharp nose" designs for densely wired spaces. These slim profiles slide easily between bundled cables. They save hours of frustrating installation time.

Output Signal Compatibility

You must match the clamp to your specific data logger or instrument. Incompatible signals render the sensor useless. Manufacturers divide these products into two distinct categories. You must clearly differentiate between them before purchasing.

1. Voltage Output Models: These output standardized voltages like 1V or 5V. They suit oscilloscopes and specific power quality analyzers.

2. Current Output Models: These output scaled currents like 1A or 5A. They fit standard industrial meters and traditional relay systems.

Data Sheet Red Flags

Amateur buyers only look at maximum current capacity. Experienced engineers look much deeper. A reliable specification sheet must include safety and accuracy benchmarks. Look for strict Isolation Test ratings. A rating of 4kV/1 Min proves the sensor can survive high-voltage spikes safely. You must also check defined Phase Shift tolerances. Accurate power quality analysis requires minimal phase degrees of error.

Advanced Applications: Smart Grids, EVs, and Solar Energy

Modern sensors do more than read numbers on a screen. They act as the nervous system for smart energy grids. They enable intelligent automation. They protect fragile infrastructure from sudden overloads. We highlight three cutting-edge applications below.

Dynamic Load Balancing (EV Charging)

Electric vehicles draw massive amounts of power. Homes usually possess limited total electrical capacity. A transformer clamp prevents facility electrical overloads effortlessly. It monitors the main incoming power line. It communicates constantly with the EV charger. When you turn on a high-draw appliance like an oven, the clamp detects the spike. It tells the charger to throttle power down immediately. This prevents blown fuses and tripped main breakers.

Bidirectional CTs for Solar (Photovoltaic) Systems

Solar energy systems require complex bidirectional tracking. Energy flows in two distinct directions. You import power from the grid at night. You export excess solar power during the day. Standard sensors cannot distinguish between importing and exporting. You need a bidirectional clamp. It detects exact flow direction. Smart systems use this data to redirect excess solar energy. They push it into local battery storage or EVs. This prevents selling power back to the grid at terrible wholesale rates.

Backend Integration

Hardware must talk to software seamlessly. Selecting isolated sensors limits your capabilities. You must choose clamps offering deep backend integration. They need to connect easily with smart grid ecosystems. Ensure your monitoring hardware translates sensor data into OCPP (Open Charge Point Protocol) compliant formats. This allows remote monitoring across massive commercial EV fleets.

Field Implementation Risks and Troubleshooting

Even premium sensors fail if installed incorrectly. Technicians face specific hurdles during deployment. Misunderstandings about polarity cause severe system faults. Poor maintenance habits destroy equipment permanently. We detail the critical field risks you must avoid.

The Directionality Myth vs. Reality

Many electricians argue about clamp direction. They wonder if the arrow on the sensor matters. The answer depends entirely on your measurement goal. It involves separating simple current from complex power.

• Current Only: Single-phase current measurement ignores direction. The polarity does not impact the reading. The meter simply calculates the alternating wave magnitude.

• Power & Protection Circuits: Direction becomes critical here. You measure power (Watts) by comparing current against voltage. You might also feed a differential protection circuit. Installing the sensor backwards creates a severe 180-degree phase shift. The system misreads delivery as receiving. This leads to massive system faults. It also causes dangerous "nuisance tripping" in sensitive industrial switchgear.

Leakage Current Measurement Tactics

Finding a current leak normally requires tedious circuit tracing. A specialized technique simplifies this process entirely. You use the sensor to measure the live and neutral wires simultaneously. You place both wires inside the single jaw.

1. Clamp both wires together securely.

2. Check the meter reading immediately.

3. Analyze healthy circuits: The opposing magnetic fields cancel each other out. The meter reads exactly zero.

4. Analyze faulty circuits: A non-zero reading instantly identifies leakage. Current is escaping the intended path and bleeding into the ground.

Maintenance Red Lines

You must treat these sensors like fragile optical instruments. Rough handling ruins their accuracy permanently. We enforce strict care rules for all field technicians.

The magnetic core faces must remain perfectly flush. They must meet precisely when the jaw closes. Microscopic debris prevents a flush closure. This introduces massive measurement errors immediately. You must clean the core ends meticulously. Warn your team against using alcohol or water. These liquids degrade the sensitive core material over time. Use dry, clean microfiber methods exclusively. Finally, never drop the device. A hard fall permanently misaligns the jaws. This destroys the unit's accuracy forever.

Conclusion

Navigating sensor technology requires specific knowledge and careful planning. A transformer clamp serves as a safe, non-contact window into a live circuit's behavior. It keeps operators safe while delivering crucial operational data. You must evaluate multiple factors before making a procurement decision. Your choices directly impact system safety and efficiency.

Your final decision matrix should follow clear rules. Choose your physical form factor based on panel density and available space. Select your internal core material based on ambient electromagnetic interference. Manage installation directionality strictly based on whether you track simple current or total complex power.

We recommend immediate action for your procurement team. Audit your existing monitoring equipment today. Confirm whether your facility requires voltage-output or current-output sensors. Check your panel spaces to see if bulky standard jaws will fit. Clarifying these details now prevents costly returns and frustrating installation delays later.

FAQ

Q: Can a standard CT clamp measure DC current?

A: No. Standard CT clamps rely on the alternating magnetic fields of AC current to induce a reading. Direct Current creates a static magnetic field, which induces zero secondary current. Measuring DC requires a specialized clamp equipped with a Hall-effect sensor.

Q: How do I use a CT clamp to find a current leak?

A: Clamp both the live and neutral wires together inside the single jaw. If the circuit is healthy, the opposing magnetic fields cancel out, giving a reading of zero. If there is any reading, current is leaking elsewhere, typically straight to the ground.

Q: Why is my CT clamp buzzing or reading inaccurately?

A: This is usually caused by microscopic debris, rust, or physical damage preventing the jaw's magnetic core faces from closing completely. Even a tiny air gap drastically alters the magnetic flux, leading to immediate measurement errors and audible vibration.

Q: What is the difference between a CT clamp and a Rogowski coil?

A: CT clamps use rigid magnetic cores. They are best for high accuracy at standard industrial frequencies. Rogowski coils are flexible, coreless loops. They are ideal for wrapping around massive busbars and handling very high transient currents without core saturation.
