What Are The Types Of Transformer Clamps?

When engineers search for a "transformer clamp," they often face a wall of confusing, overlapping search results. This industry umbrella term refers to entirely different components depending on the engineering context. It might mean manufacturing hardware, safety grounding devices, physical mounting brackets, or electrical measurement tools. Selecting the wrong component for your specific application inevitably leads to disastrous outcomes. You might experience mechanical failure like core vibration and insulation crushing. You could face severe electrical hazards from grounding failure. Technicians might collect wildly inaccurate diagnostic data during routine testing.

We built this guide to disambiguate these broad categories. You will discover a strict, standard-driven evaluation framework designed to streamline your purchasing and implementation process. Read on to master the technical specifications required to choose the exact transformer clamp your project demands.

Key Takeaways

• Core & Structural Clamps prevent magnetostriction noise and core shift; material thickness and torque precision are non-negotiable.

• Grounding & Tank Clamps are heavily regulated safety devices; bronze alloy selection (e.g., C95400) and adherence to IEEE 837 dictate lifecycle reliability.

• Current Transformer (CT) Clamps range from passive AC-only units to high-precision closed-loop sensors; selection depends entirely on frequency, AC/DC requirements, and spatial constraints.

• Mounting Clamps dictate installation safety; bare clamp designs require additional terminal shielding to mitigate high-voltage risks.

Categorizing Transformer Clamps by Engineering Function

Buyers must first frame the exact engineering problem they need to solve. A quick disambiguation prevents costly procurement mistakes. The industry divides these components into four distinct functional categories. Each category addresses a uniquely different operational phase.

• The Structural/Manufacturing Need: Manufacturers rely on core and coil clamps internally. They maintain stack tightness. These components prevent physical displacement under heavy electromagnetic stress.

• The Safety & Installation Need: Electrical contractors utilize grounding and tank clamps. They bond the equipment chassis to the grounding system. This action dissipates fault currents safely away from personnel.

• The Diagnostic & Testing Need: Technicians deploy Current Transformer (CT) clamp probes. They use them as non-intrusive testing instruments. These probes measure AC or DC current without disconnecting live circuits.

• The Physical Integration Need: Panel builders and DIY engineers purchase mounting clamps and brackets. They use them to physically secure the equipment inside a larger metal chassis.

Understanding these distinct categories helps you navigate supplier catalogs effectively. You can quickly filter out irrelevant products. We will explore the technical nuances of each category below.

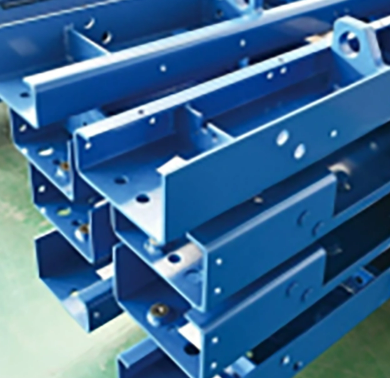

Evaluating Core & Structural Clamps: Mechanical Stability and Noise Reduction

Internal structural stability dictates the operational lifespan of any power unit. Core and coil clamps serve a vital manufacturing purpose. They hold the magnetic core laminations tightly together. They also secure the copper or aluminum windings in place. Poor structural clamping inevitably leads to rapid mechanical degradation.

Primary Configurations

Engineers primarily specify two structural configurations. The choice depends heavily on the enclosure dimensions and the unit's orientation.

• Rectangle Clamps: Builders typically use these for standard vertical units. They provide robust, balanced support. They secure heavy coils and bulky core assemblies effectively.

• Z-Type Clamps: Manufacturers utilize these for slimmer enclosures. They offer excellent cross-functional support. Factories often stamp them from Galvanized Iron (GI) or Mild Steel (MS).

Material Selection Criteria

Material science plays a huge role in structural reliability. The operating environment dictates the exact metal alloy you must select.

Implementation Risks & Experience

The most significant implementation risk involves mechanical fastening. We call this the torque dilemma. Assembly technicians must install every bolt using calibrated torque wrenches. Proper tension ensures optimal mechanical stability.

Under-tightening creates severe problems. It allows the core laminations to vibrate under electromagnetic forces. This phenomenon causes magnetostriction. Magnetostriction generates excessive operational noise and slowly destroys internal structures. Conversely, over-tightening poses equally dangerous risks. Excessive pressure easily crushes the delicate internal paper insulation. Insulation failure causes immediate short circuits and premature equipment death.

Getting this balance right directly benefits the buyer. It reduces corrective maintenance costs drastically. It prevents unexpected downtime stemming from vibration-induced wear.

Transformer Grounding Clamps: Compliance, Specs, and Safety Standards

Grounding devices represent critical life-safety components. They are not simple metal brackets. They protect human operators from lethal fault currents. Regulatory bodies strictly govern their design, material composition, and installation.

The Material Advantage

Industry standards universally favor bronze over brass or basic steel. Bronze alloys offer superior electrical conductivity combined with exceptional mechanical toughness. Standard steel easily rusts, ruining the electrical connection. Brass lacks the necessary tensile strength for high-torque applications.

• C95400 (Aluminum Bronze): This alloy delivers high yield strength. It offers excellent resistance to environmental corrosion. Engineers specify it for heavy-duty industrial grounding.

• C95500 (Nickel Aluminum Bronze): The addition of nickel significantly enhances wear resistance. We recommend this alloy for areas experiencing extreme physical stress or heavy vibration.

Technical Specifications to Verify

Procurement teams must verify specific technical parameters before purchasing. First, check conductor range compatibility. Ensure the connector supports your required wire sizes. North American standards use AWG or MCM measurements. European standards use millimeter squared (mm²) equivalents. Mismatched wire sizes cause loose connections and dangerous arcing.

Second, mandate essential hardware inclusions. You must specify stainless steel lock washers and nuts. Standard galvanized nuts often loosen over time due to persistent 60Hz hum and micro-vibrations. Stainless steel hardware prevents this vibrational loosening.

Testing & Compliance Requirements

Never purchase uncertified safety connectors. You should only shortlist vendors providing verifiable compliance data. The two most critical standards are UL 467 and IEEE 837. These authoritative frameworks verify three main performance metrics:

1. Mechanical Pull-Out Strength: Ensures the connector securely grips the copper grounding wire during violent physical disruptions.

2. Thermal Rise Verification: Confirms the metal body will not melt or degrade when subjected to massive electrical fault currents.

3. Salt Spray Survivability: Guarantees long-term corrosion resistance in harsh, coastal environments.

Installation Realities

Even the best hardware fails under poor installation practices. Best practice dictates careful surface preparation. Installers must remove all tank paint, rust, and surface oxidation before application. Bare metal must contact bare metal. Furthermore, installers require strict adherence to bolt torque specifications. For example, applying 20-25 ft-lbs of torque for standard 3/8" bolts guarantees a secure bond. Ignoring torque limits routinely causes clamp-body fracturing.

Current Transformer (CT) Clamps: Measurement Accuracy and Application Fit

Diagnostic tools represent an entirely different category. Technicians use CT clamp probes to measure electrical flow safely. They snap these jaws around live conductors. The instrument reads the magnetic field to calculate current. Selecting the right probe requires understanding specific diagnostic demands.

Solution Categories and Evaluation Dimensions

The market offers several distinct probe technologies. Each addresses specific measurement challenges, accuracy requirements, and spatial limitations.

Evaluating the Technologies

Passive Transformers: These represent the budget baseline. They utilize traditional wire windings around a solid magnetic core. They are highly durable. However, they only measure alternating current (AC). They suffer from lower accuracy tolerances on cheaper models.

Flexible / Rogowski Probes: These utilize a coreless, flexible rope design. They are ideal for high-amperage applications. Technicians thread them easily through physically restrictive electrical panels. Because they lack a solid iron core, they remain completely immune to magnetic saturation.

Open Loop vs. Closed Loop Hall Effect Sensors: If you need to measure direct current (DC), you must use Hall effect technology. Open loop sensors provide good accuracy for general-purpose AC/DC measurement. Closed loop sensors represent the premium tier. They use a secondary feedback winding internally. This winding actively cancels out magnetic flux. This mechanism offers the highest possible linearity and thermal stability. Engineers achieve less than 1% accuracy for highly critical diagnostics.

Shortlisting Logic

Base your final procurement on strict engineering realities. Do you need True RMS measurement for distorted waveforms? Must you measure both AC and DC? What is the maximum physical diameter of your facility's conductors? Finally, confirm the required frequency bandwidth. High-frequency inverters demand probes capable of reading well beyond standard 50/60Hz limits.

Transformer Mounting Types: Cost vs. Safety Trade-offs

Physical integration dictates how you install the equipment into a larger chassis. Panel builders constantly balance upfront cost against long-term safety. The physical mounting bracket dictates the final installation footprint. It also directly influences the user's exposure to high-voltage terminals.

Standard Wrap-Around Clamps

This design represents the most cost-effective option available. The metal band firmly wraps around the magnetic core. It includes basic tabs for screw-down installation. While cheap and reliable, it presents a significant drawback. It leaves the electrical connection terminals completely exposed. Installers using this method require secondary terminal shields. These extra plastic shrouds mitigate dangerous shock hazards.

Universal Frame Mounting

Frame mounting offers excellent multi-hole chassis integration. Manufacturers bolt the heavy core directly into a surrounding metal bracket. This design handles heavier physical loads. However, it requires careful engineering. Builders must install strict electrical insulation between the metal frame and the magnetic core. Failure to insulate properly causes severe induction losses. Stray magnetic fields heat up the frame, wasting energy and threatening surrounding components.

Drop-Through & Shrouded Designs

Premium installations utilize drop-through or fully shrouded mounting systems. In a drop-through setup, technicians route wires directly beneath the mounting chassis. The chassis hides the live connections completely. Shrouded designs enclose the entire unit, including terminals, inside a protective metal or plastic box. These options carry a higher upfront cost. However, they significantly improve safety. They also provide aesthetic integration for consumer-facing audio equipment or highly accessible laboratory power supplies.

Conclusion

As we have established, "transformer clamp" remains a highly contextual industry term. Precision matters deeply in engineering procurement. You must firmly define your operational context before reviewing product catalogs. Are you manufacturing an internal core assembly? Are you securing a high-voltage tank to a grounding grid? Or are you a technician seeking accurate AC/DC diagnostic probes?

Regardless of your specific application, strict adherence to material science guarantees success. Relying on verified technical specifications protects your investment. Insist on industry compliance standards like UL 467 or IEEE 837 when evaluating safety hardware. Verify exact alloy compositions like C95400 bronze. Confirm structural steel thickness and mandatory torque requirements.

Take action today by auditing your specific environmental requirements. Map out your temperature extremes, expected vibration levels, and potential coastal moisture exposure. Consult your facility's engineering safety document before requesting final specification sheets from vendors. This disciplined approach guarantees optimal performance and long-term reliability.

FAQ

Q: What is the difference between an open-loop and closed-loop current clamp?

A: Open-loop clamps measure general AC/DC current using a basic Hall effect sensor. They are cost-effective but slightly less accurate. Closed-loop clamps add a secondary feedback winding. This winding cancels internal magnetic flux. It provides superior linearity, high bandwidth, and extreme accuracy (under 1% error). Engineers use closed-loop models for precision laboratory diagnostics.

Q: What materials are best for transformer grounding clamps?

A: Cast bronze alloys represent the industry standard. Specifically, Aluminum Bronze (C95400) provides exceptional structural integrity and electrical conductivity. It resists cracking under heavy bolt torque. Nickel Aluminum Bronze (C95500) offers even greater wear resistance for high-vibration environments. You should avoid standard steel, which rusts easily.

Q: Why is a torque wrench necessary when installing core clamps or ground connectors?

A: Precision torque ensures mechanical stability without causing damage. Under-tightening structural units leads to severe magnetostriction vibration and noise. Over-tightening crushes delicate paper insulation, causing internal short circuits. For grounding connectors, ignoring torque specs (like 20-25 ft-lbs) often fractures the bronze clamp body, destroying the safety ground.

Q: Can I use standard steel for a transformer clamp?

A: It depends strictly on the application. For internal structural support in controlled environments, Cold Rolled Coil (CRC) steel works perfectly. However, for outdoor or coastal exposure, standard steel rusts quickly. You must specify Galvanized Iron (GI) or Stainless Steel to combat environmental corrosion. Never use steel for high-conductivity safety grounding.
