How Does A Distribution Transformer Core Work?

Inefficient grid infrastructure silently drains operational budgets every day. Constant energy loss remains a hidden financial reality for many industrial facilities. Power does not just vanish into thin air. It escapes through poorly optimized electrical equipment. A distribution transformer core is much more than a simple block of metal. It acts as the critical "magnetic highway" inside your equipment. This specific highway dictates how efficiently high-voltage power steps down for end-user consumption. Facility managers face mounting pressure to reduce energy waste. Utility procurement teams must modernize aging grid assets. Engineers need reliable performance under variable demands. Understanding this magnetic mechanism is vital. It is the absolute first step to evaluating long-term operational costs accurately. You will learn how to mitigate strict compliance risks effectively. We will also explore how to select the right unit for specific load requirements.

Key Takeaways

• The core acts as a highly efficient path for magnetic flux, ensuring maximum energy transfer between primary and secondary windings.

• Up to 2.9% of total grid energy is wasted globally through transformer losses; core design directly impacts "No-Load" (iron) losses.

• Regulatory shifts (like DOE 2028 standards) are forcing a transition from traditional Cold Rolled Grain Oriented (CRGO) steel to high-efficiency Amorphous metals.

• Core construction (Core-type vs. Shell-type) heavily influences a unit's physical footprint, upfront CAPEX, and long-term OPEX.

The Business Reality: Why the Transformer Core Matters

Power distribution networks handle massive amounts of raw energy. In these electrical systems, power is not inherently lost. It is usually misdirected as heat or audible noise. The core exists to prevent this exact physical problem. Think of the magnetic field generated by alternating current. Without a high-quality core, magnetic flux travels poorly. It acts like vehicles struggling on a winding, inefficient dirt road. Resistance is high. Forward momentum drops.

The core upgrades this energy path drastically. It functions as a multi-lane, high-speed interstate. It confines and directs the magnetic field precisely. This ensures maximum magnetic coupling between primary and secondary windings. Better coupling means superior power transfer.

Financial implications run extremely deep here. A poorly manufactured core leads to constant base-level energy waste. This drives up utility OPEX significantly. It happens regardless of whether your facility actively draws heavy power. The power meter keeps running continuously. The energy simply dissipates into the surrounding air as heat. You pay a premium for electricity you never actually use. Upgrading this core component stops the financial bleed immediately. It also reduces the thermal strain on surrounding infrastructure. Cooler equipment lasts longer. It requires less aggressive HVAC support in indoor substations.

Core Mechanics: How Electromagnetic Induction Steps Down Voltage

Let us break down the physical physics of energy transfer. We rely heavily on Michael Faraday’s Law of Induction. High-voltage alternating current (AC) enters the primary winding first. This rushing current creates a rapidly fluctuating magnetic field. The core captures this dynamic field immediately. It channels the flux safely toward the secondary winding. This controlled magnetic movement induces a lower, usable voltage. You get stable, safe power for everyday commercial equipment.

The math behind this step-down process is highly reliable. We call it the turns ratio engine. The ratio of wire wraps strictly dictates the output voltage. You simply count the turns on the primary versus the secondary winding. Imagine 100 turns stepping down to exactly 10 turns. You achieve exactly a 10x voltage reduction. A typical 11kV feed easily becomes a 400V supply.

Here is a practical evaluation tip for your site inspections. High voltage always requires much lower current. You will consistently see thinner wire on the primary side. Low voltage requires much higher current to deliver the same power. You will immediately notice thicker wire on the secondary side. This provides a quick visual indicator during standard field maintenance.

Ideal transformers only exist in university textbooks. Real-world distribution networks face serious physics challenges constantly. A physical distribution transformer core battles leakage flux every second. Magnetic lines sometimes escape the intended structural path. This leakage directly causes poor voltage regulation at the load. Engineers must also account for parasitic capacitance between windings. These physical realities demand highly optimized engineering and premium materials.

Evaluating Distribution Transformer Core Materials and Construction

Material selection ultimately defines your overall unit efficiency. The electrical industry currently utilizes two primary metal categories.

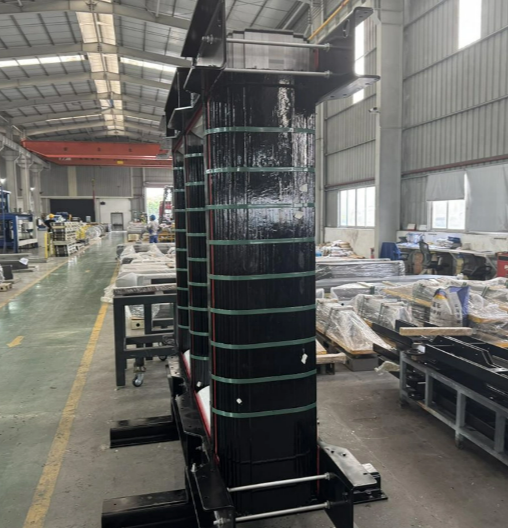

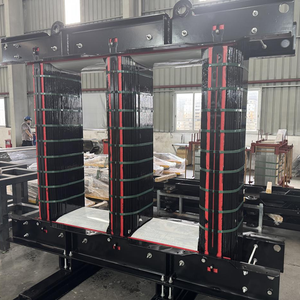

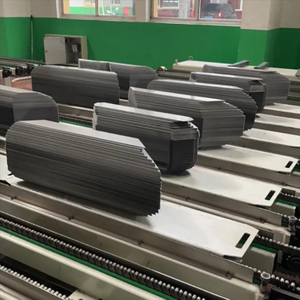

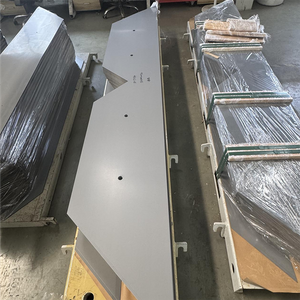

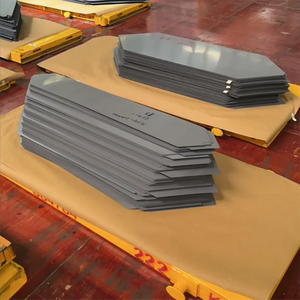

Cold-Rolled Grain-Oriented (CRGO) steel represents the historical industry standard. Manufacturers use specialized cold rolling techniques to strengthen the metal. They then align the silicon steel grains deliberately. This specialized alignment increases magnetic flux density by up to 30%. CRGO remains a highly reliable choice globally. It offers a very cost-effective solution for standard grid deployments.

Amorphous and nanocrystalline metals provide a cutting-edge, high-efficiency alternative. They feature a completely randomized, non-crystalline atomic structure. This unique internal makeup drastically reduces magnetization energy loss. The metal resists magnetic friction brilliantly. There is a notable implementation risk, however. These advanced materials are noticeably more brittle during manufacturing. They also carry a significantly higher initial capital expenditure (CAPEX). You must calculate your long-term return on investment carefully.

Assembly configurations also dictate physical footprint and cooling. You must generally choose between core-type and shell-type designs.

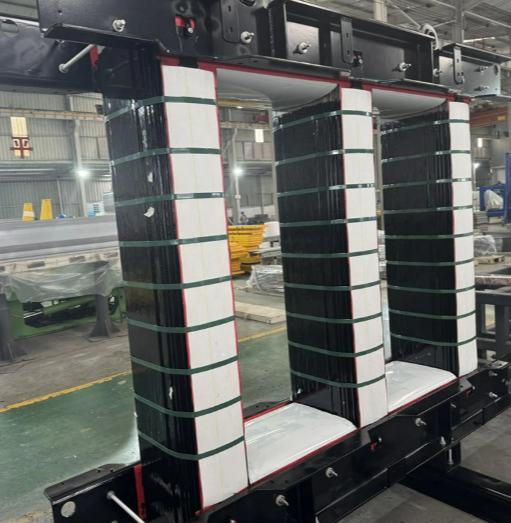

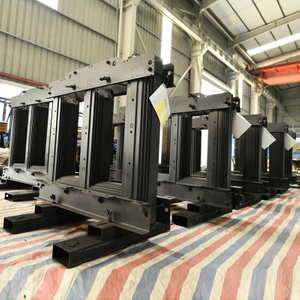

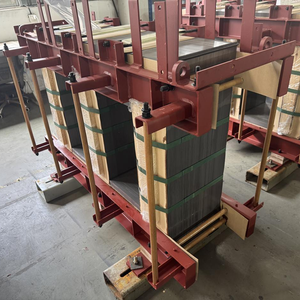

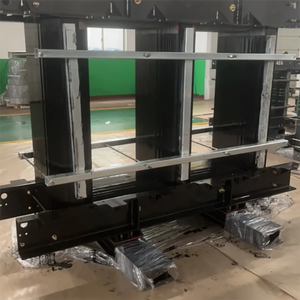

In a core-type design, the electrical windings surround the core completely. This physical configuration is generally easier to cool. Field technicians find them highly serviceable during routine maintenance. They serve as the standard choice for many pad-mounted networks. Most rural pole-mounted units also utilize this specific layout.

A shell-type design flips this geometry inside out. The metal core surrounds the electrical windings instead. This offers a much more closed, secure magnetic path. It suffers from far fewer leakage losses overall. Engineers often specify shell-type units for tight, compact spaces. They also excel in highly robust, heavy-duty industrial distribution scenarios.

Joint construction quality matters immensely for operational efficiency. Pay close attention to how manufacturers connect the steel laminations. Look specifically for "step-lap mitred joints" in vendor specification sheets. This specific layering technique significantly reduces magnetic resistance. It improves flux transition at the sharp corners. Older butt-lap joints simply cannot compete with this modern efficiency.

Here is a detailed comparison chart outlining these core materials.

The Hidden Costs: Assessing No-Load (Iron) vs. Load (Copper) Losses

Financial leaks happen in two distinct physical ways. You must evaluate both variables to understand true operational expenses.

No-load losses occur the precise moment you energize the unit. Industry professionals commonly call these core losses or iron losses. They happen continuously regardless of whether a building actually pulls power. Two main physical phenomena cause this relentless constant drain.

First, you must deal with magnetic hysteresis. This is essentially molecular friction occurring inside the metal. The alternating current flips the magnetic field polarity constantly. This internal flipping generates unwanted heat. Second, you face physical eddy currents. These are rogue, localized circular currents swirling within the core steel. They act like tiny electrical whirlpools consuming useful energy.

Load losses represent the second major category of waste. Industry professionals often call these copper losses or winding losses. They happen strictly through the natural electrical resistance of the winding conductors. Electrical engineers refer to this specifically as I⊃2;R loss. This waste increases proportionally with facility demand. As your equipment draws more power, load losses scale up aggressively.

You must master the long-term OPEX evaluation equation. Guide your procurement team carefully when reading complex vendor specs. Many commercial facilities experience highly variable daily power loads. They endure long overnight periods of extremely low power consumption. Office buildings often draw minimal current during the weekends. In these specific scenarios, minimizing no-load losses yields the highest return. Investing heavily in an amorphous metal core makes absolute financial sense. It slashes those constant baseline iron losses significantly over decades.

Compliance, Scalability, and DOE 2028 Readiness

Regulatory landscapes are shifting rapidly across the global energy market. You must navigate these strict efficiency mandates proactively. The U.S. Department of Energy (DOE) rolls out strict 2028 efficiency standards soon. The European Union also continues to enforce rigorous EcoDesign directives. These mandatory rules demand massive reductions in baseline grid waste.

This creates a massive procurement risk for buyers today. Buying cheaper, low-efficiency CRGO units seems financially tempting right now. However, it may lead directly to stranded physical assets soon. You could face steep compliance penalties in the very near future. Utility networks must meet these evolving minimum efficiency levels.

Future-proofing your distribution infrastructure requires strong strategic foresight. The global industry is actively shifting toward distributed gap cores. You might hear technicians call them wound cores. Amorphous materials are quickly becoming the new expected baseline. Grid modernization undeniably demands this massive leap in baseline efficiency.

Renewable energy integration also requires ultra-efficient voltage step-downs. Wind and solar power inputs fluctuate wildly throughout the day. A premium distribution transformer core handles these intense variables safely. It steps down sporadic voltages without shedding excessive thermal heat.

Shortlisting Logic: How to Specify the Right Transformer Core

You need a reliable, repeatable methodology for vendor selection. Follow these precise steps to specify your next electrical unit safely.

Step 1: Match Core Type to Application

Your physical installation environment dictates your structural choices heavily.

1. Pad-mounted units: These are perfect for underground city routing. They sit securely in tamper-proof, locked ground enclosures.

2. Pole-mounted units: These remain ideal for rural overhead distribution networks. They keep dangerous high voltage safely out of civilian reach.

3. Dry-Type units: These are absolutely required for indoor or commercial spaces. They eliminate flammable cooling oil for superior indoor fire safety.

Step 2: Balance CAPEX vs. OPEX

You should never buy based on the initial sticker price alone.

• Demand precise vendor data on guaranteed maximum no-load losses.

• Calculate a realistic 20-year payback period based on local utility rates.

• Always factor in the external cooling costs required to manage heat dissipation.

Step 3: Require Rigorous Quality Assurance

Demand hard, documented proof of manufacturing excellence. A reliable unit must pass rigorous, standardized factory evaluations.

• Look for recognized international testing certifications immediately. IEC, ANSI, and IEEE testing accreditations are generally non-negotiable.

• Request comprehensive routine factory test reports before final delivery.

• Review Dissolved Gas Analysis (DGA) baselines meticulously. Heat run tests verify the core handles maximum thermal loads safely.

Conclusion

The distribution transformer core acts as the absolute heartbeat of grid reliability. It heavily dictates facility power stability and overall grid energy efficiency. A well-engineered core stops passive electrical energy waste instantly. It channels magnetic flux seamlessly from primary to secondary copper windings.

You must look far beyond the initial, tempting purchase price. Always request full loss evaluation data from your chosen manufacturers. Compare their guaranteed no-load losses against your projected daily load losses. This critical data empowers you to make a highly sound financial decision. Upgrading to amorphous metals or step-lap mitred joints pays off exponentially.

Contact our specialized engineering team today for a site-specific load analysis. We can carefully review your unique, facility-specific power demands. Let us walk you through a comprehensive catalog of high-efficiency, fully compliant distribution transformers. We will tailor the perfect magnetic solution directly to your facility.

FAQ

Q: Why do transformer cores make a humming noise?

A: This hum originates from a physical phenomenon called magnetostriction. The core steel expands and contracts microscopically as the alternating magnetic field fluctuates. High-quality construction techniques minimize this resulting vibration. Stronger structural clamping mechanisms and step-lap mitred joints significantly reduce the resulting audible noise.

Q: Can a distribution transformer core work with DC (Direct Current)?

A: No. Transformer cores rely entirely on electromagnetic induction. This physical process requires a constantly changing magnetic field. Alternating Current (AC) provides this necessary fluctuation naturally. Direct Current (DC) generates a stagnant, static magnetic field. Pushing DC through the unit acts as a short circuit and burns out the windings.

Q: What is the typical lifespan of a distribution transformer core?

A: A high-quality core can operate efficiently for 25 to 30 years or more. This lifespan requires proper cooling mechanisms, such as ONAN or ONAF systems. Diligent oil maintenance remains critical. You must actively prevent moisture degradation from breaking down the internal paper insulation over time.

Q: Is copper or aluminum better for the windings surrounding the core?

A: Copper offers approximately 60% higher electrical conductivity. It allows for a smaller physical footprint but carries a higher market premium. Aluminum remains highly cost-effective for tighter project budgets. However, it requires a larger physical core window to accommodate the thicker required wire. Your choice depends entirely on site space constraints versus budget limits.
