Transformers are fundamental devices in electrical power systems, enabling the efficient conversion of voltage levels and ensuring reliable energy transmission across power grids, industrial systems, and renewable energy installations. At the center of every transformer lies a transformer core, a component that directly impacts performance, energy efficiency, reliability, and longevity. Understanding the purpose and function of the transformer core is essential for engineers, manufacturers, and energy professionals.
This article explores in detail what purpose the transformer core serves, examining its role in magnetic flux conduction, energy efficiency, mechanical support, thermal management, and modern advancements in materials and design.

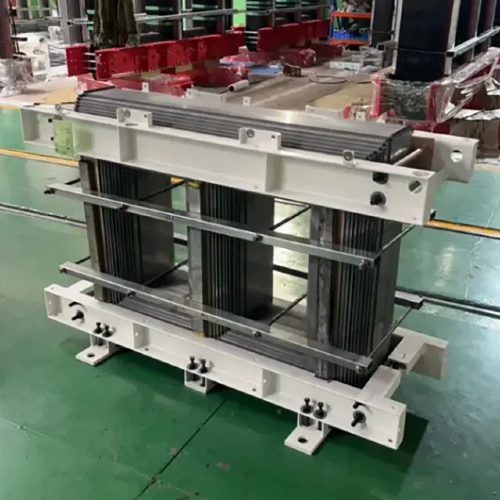

The transformer core serves as the magnetic backbone of a transformer. It provides a continuous path for magnetic flux, linking the primary and secondary windings, and facilitating efficient energy transfer. Without a well-designed core, transformers would experience high energy loss, excessive heat generation, and reduced reliability.
The purpose of the transformer core extends beyond mere magnetic conduction. It governs the overall efficiency, operational stability, mechanical support, and thermal performance of the transformer. In modern electrical systems, the choice of core material, lamination technique, and structural design determines whether a transformer can meet the growing demands for high efficiency and low environmental impact.
Additionally, the transformer core plays a key role in noise reduction and vibration control. By ensuring the windings remain properly aligned and securely clamped, the core minimizes mechanical stress and humming sounds that can occur during operation. This contributes not only to operational reliability but also to the longevity of the transformer under continuous load conditions.
The primary purpose of the transformer core is to provide a controlled path for magnetic flux between the primary and secondary windings. When an alternating current flows through the primary coil, it generates a time-varying magnetic field. The core channels this field efficiently, inducing voltage in the secondary coil while minimizing energy loss.
Key functions include:
Guiding magnetic flux: Ensures minimal leakage and optimal flux linkage.
Reducing energy loss: Directs magnetic energy efficiently to the secondary winding.
Supporting mechanical stability: Maintains proper alignment of windings and prevents vibrations.
Furthermore, the core’s design helps to concentrate the magnetic flux within a confined path, preventing it from dispersing into the surrounding environment, which could otherwise cause interference with nearby electrical equipment. By maintaining a controlled magnetic circuit, the core ensures consistent voltage transformation across varying load conditions.
A transformer core must have high magnetic permeability to allow magnetic flux to flow with minimal opposition. Materials with high permeability reduce magnetic reluctance, improving energy transfer efficiency. Low permeability results in weak flux coupling, higher energy loss, and increased heat generation.
High-permeability cores also enhance the transformer's response to transient loads, allowing it to adapt quickly to sudden changes in current without significant energy loss. This makes permeability a crucial factor in both the efficiency and operational stability of transformers.
The core’s geometry and lamination pattern determine how the magnetic flux distributes across the transformer. Proper design ensures even flux distribution, reducing localized heating and minimizing hysteresis and eddy current losses.
Advanced design considerations may include optimizing limb thickness, yoke width, and the shape of corners to improve magnetic continuity and reduce leakage flux. By carefully controlling flux distribution, transformer cores achieve both higher efficiency and improved thermal performance, extending operational lifespan.
Energy efficiency is a critical purpose of the transformer core. Transformers account for significant energy usage in power systems, and losses in the core can represent a substantial portion of wasted energy. The core serves to minimize these losses through material selection and structural design.
Hysteresis loss occurs due to the repeated magnetization and demagnetization of the core material during alternating current operation. A transformer core made of grain-oriented silicon steel, amorphous alloys, or nanocrystalline materials reduces hysteresis losses, thereby enhancing transformer efficiency.
The reduction of hysteresis loss also contributes to lower operating temperatures, improving the safety and durability of the transformer. Consistently lower hysteresis loss can extend the core’s operational life and reduce the need for frequent maintenance.
Eddy currents are circulating currents induced within the core material by alternating magnetic fields. To limit these losses, transformer cores are made from thin laminated sheets, electrically insulated from each other. Lamination reduces the path for eddy currents and minimizes heat generation.
By controlling eddy currents, transformers can operate more efficiently, with lower thermal stress on insulation materials and windings. This helps maintain consistent performance over extended periods, especially under high load or high-frequency conditions.
The combination of high-permeability materials, lamination, and optimized core design significantly improves transformer efficiency. Core loss, including hysteresis and eddy currents, can account for a large percentage of total transformer losses if not properly managed.
Loss Type | Description | How Core Reduces It |
Hysteresis Loss | Energy lost due to repeated magnetization cycles | High-permeability materials and proper annealing |
Eddy Current Loss | Circulating currents within the core | Laminated sheets with insulation coatings |
Leakage Flux | Magnetic flux not linked to windings | Optimized core geometry and clamping |
The purpose of the transformer core is closely linked to the magnetic and physical properties of the materials used. Core material selection is essential for energy efficiency, mechanical strength, thermal performance, and long-term reliability.
GO steel has aligned grains that allow magnetic flux to pass with minimal resistance.
Advantages: Low core loss, high magnetic permeability, suitable for high-power transformers.
Applications: Distribution and transmission transformers.
High-quality GO steel also exhibits excellent thermal stability, ensuring that transformers can operate efficiently under varying environmental conditions and electrical loads.
NGO steel has randomly oriented grains, providing isotropic magnetic properties.
Advantages: Flexibility for rotating machinery and small transformers.
Applications: Small dry-type transformers, motors, electronic transformers.
The uniform magnetic behavior of NGO steel is beneficial for applications where flux directions change frequently, as in rotating machines or variable-frequency transformers.
Amorphous alloys are non-crystalline and reduce eddy current losses dramatically.
Advantages: Up to 70% lower core losses, lightweight, eco-friendly.
Applications: Energy-efficient transformers, renewable energy systems.
Their unique atomic structure allows for minimal energy dissipation and reduced heat generation, which contributes to longer transformer life and lower cooling requirements.
Nanocrystalline cores combine low losses with extremely high permeability.
Advantages: Compact, stable, low magnetostriction.
Applications: Smart grids, energy storage systems, advanced industrial transformers.
Nanocrystalline cores are particularly useful in precision applications requiring minimal energy loss and stable performance over a wide range of operating conditions.
Ferrite cores are ideal for high-frequency transformers due to their magnetic properties and electrical resistance.
Advantages: High-frequency performance, compact size, low electromagnetic interference.
Applications: Switch-mode power supplies, inverters, communication electronics.
Ferrite cores maintain efficiency at high frequencies where traditional steel cores would produce excessive losses.
Material Type | Magnetic Permeability | Core Loss (W/kg) | Typical Applications |
GO Silicon Steel | High | 0.9–1.5 | Power transformers |
NGO Silicon Steel | Medium | 1.2–2.5 | Dry-type transformers |
Amorphous Alloy | Very High | 0.2–0.5 | Energy-saving transformers |
Ferrite | Moderate | 0.3–1.0 | High-frequency transformers |
Nanocrystalline | Extremely High | 0.2–0.6 | Smart grids, renewable energy |
The transformer core also serves mechanical and structural purposes. Its design determines magnetic flux distribution, vibration, noise reduction, and thermal management.
Windings are placed around vertical limbs of a rectangular core.
Efficient flux path.
Cost-effective and widely used in distribution transformers.
Provides stable performance under continuous load conditions.
The core surrounds the windings, offering:
Reduced leakage flux.
Enhanced mechanical stability and safety.
Improved thermal distribution across the core and windings.
Circular cores that minimize air gaps and flux leakage.
Compact, quiet, and highly efficient.
Ideal for small power and electronic transformers.
Provide better mechanical rigidity and vibration control.
Modular laminated cores allow easy assembly and maintenance.
Excellent space utilization.
Reduces material waste and simplifies manufacturing.
Ensures consistent flux distribution and mechanical alignment.
Core Type | Structure | Efficiency | Applications |
Core-Type | Windings around limbs | Moderate | Distribution |
Shell-Type | Core surrounds windings | High | Industrial |
Toroidal | Circular/Donut | Very High | Compact power |
C-Core/E-Core | Laminated modular | High | Medium-voltage |
The transformer core also supports operational stability. It influences voltage regulation, thermal management, and overall reliability.
Core properties affect how well the transformer maintains output voltage under load variations. High-quality cores minimize voltage drops and fluctuations, ensuring consistent power delivery.
Cores influence heat dissipation. Proper material selection and lamination reduce heat buildup, ensuring safe operation and longer lifespan.
A well-engineered transformer core minimizes vibration, mechanical stress, and magnetic leakage, contributing to safe and stable transformer operation in diverse conditions.
Modern transformer cores utilize advanced materials and manufacturing techniques to enhance efficiency, reliability, and compactness.
Reduce core loss significantly.
Enable energy savings in renewable and smart grid applications.
Offer lightweight and environmentally friendly designs.
Ferrite cores dominate in electronic and high-frequency transformers.
Nanocrystalline cores provide low-loss performance for precision applications.
CNC cutting, precision stacking, annealing, and automated clamping enhance core quality.
Advanced quality control ensures low losses, uniform flux, and long-term reliability.
The transformer core plays a pivotal role in every transformer, serving multiple critical purposes. It provides a controlled magnetic path, minimizes energy loss, enhances mechanical and thermal stability, and ensures safe and reliable operation across various applications. From core-type and shell-type to toroidal, C-core, E-core, amorphous, nanocrystalline, and ferrite cores, each design delivers unique benefits tailored to specific performance and efficiency requirements.
Choosing the right transformer core involves careful consideration of material properties, operating frequency, efficiency goals, and environmental conditions. Advanced materials such as amorphous and nanocrystalline alloys are driving significant improvements in energy efficiency, reducing core losses and supporting sustainable power solutions in modern grids and renewable energy systems.
For engineers, manufacturers, and organizations seeking high-quality transformer cores, consulting an experienced provider is essential. Foshan Huage Electric Power Equipment Co., Ltd. offers a comprehensive range of transformer cores, including customizable solutions, technical support, and rigorous quality assurance. Partnering with a professional manufacturer ensures reliable performance, reduced energy losses, and long-term operational stability. To explore high-performance transformer cores or discuss tailored solutions, contacting Huage Electric Power Equipment Co., Ltd. is highly recommended.
