Product Advantage
Our Oriented Silicon Steel is a superior low-carbon silicon iron alloy, containing 0.5% to 4.5% silicon. This material boasts exceptional characteristics like high permeability, which significantly reduces Joule loss in power equipment, enhancing efficiency and promoting energy-saving effects. Additionally, it offers low iron loss and a high resistance coefficient, making it an ideal choice for modern power solutions.
Maximum Weight of Manually Stacked Core: 120 Tons
Gap Limit at the Joint: <1 mm
Window Height Precision: ±1 mm
Window Width Precision: ±1 mm
We meticulously calculate according to your drawings. If the parameters fall within the acceptable range, we will update the quotation. Upon your confirmation, we will proceed with production based on your specifications.
Technical Parameters
| Type | Grade | Width | Max Core Loss@P1.7T/50Hz | Lamination Factor(%) | Min Induction@B800 |
| Common Type | 23Q110 | 35-1200mm | 1.10w/kg | 97.2 | 1.82T |
| 23Q120 | 1.20w/kg | 97.2 | 1.82T | ||
| 27Q120 | 1.20w/kg | 97.5 | 1.82T | ||
| 30G120 | 1.20w/kg | 98 | 1.82T | ||
| High Induction Type | B20P085 | 35-1200mm | 0.85w/kg | 97 | 1.86T |
| B23P085 | 0.85w/kg | 97.2 | 1.88T | ||
| B23P090 | 0.90w/kg | 97.2 | 1.88T | ||
| B23P095 | 0.95w/kg | 97.2 | 1.88T | ||
| B23P100 | 1.00w/kg | 97.2 | 1.88T | ||
| B27P095 | 0.95w/kg | 97.5 | 1.89T | ||
| B27P100 | 1.00w/kg | 97.5 | 1.89T | ||
| B30P120 | 1.20w/kg | 98 | 1.89T | ||
| Domain Refined High Induction Type(Laser) | B20R070 | 35-1200mm | 0.70w/kg | 97 | 1.86T |
| B23R085 | 0.85w/kg | 97.2 | 1.88T | ||
| B27RK085 | 0.85w/kg | 97.5 | 1.89T |
| Shape | Sheet |
| Iron Loss | 0.85W/Kg(1.7t/50Hz) |
| Width | 35-1060mm |

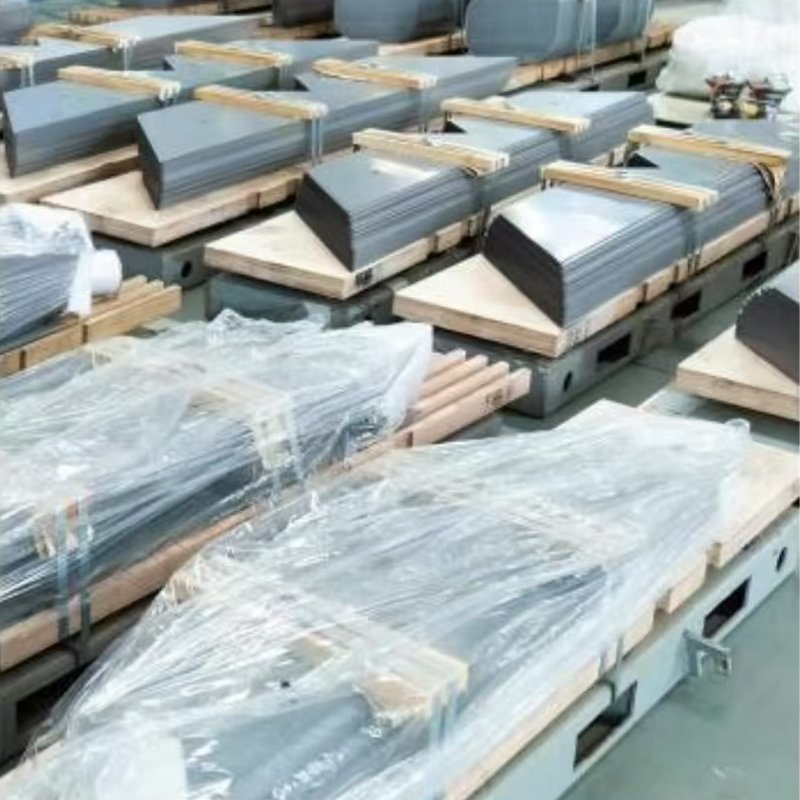

| Transport Package | Export Wood Box |
| Trademark | Huage |
| Technique | Cold Rolled |
| Thickness | 0.23mm |
| Brand | Huage |

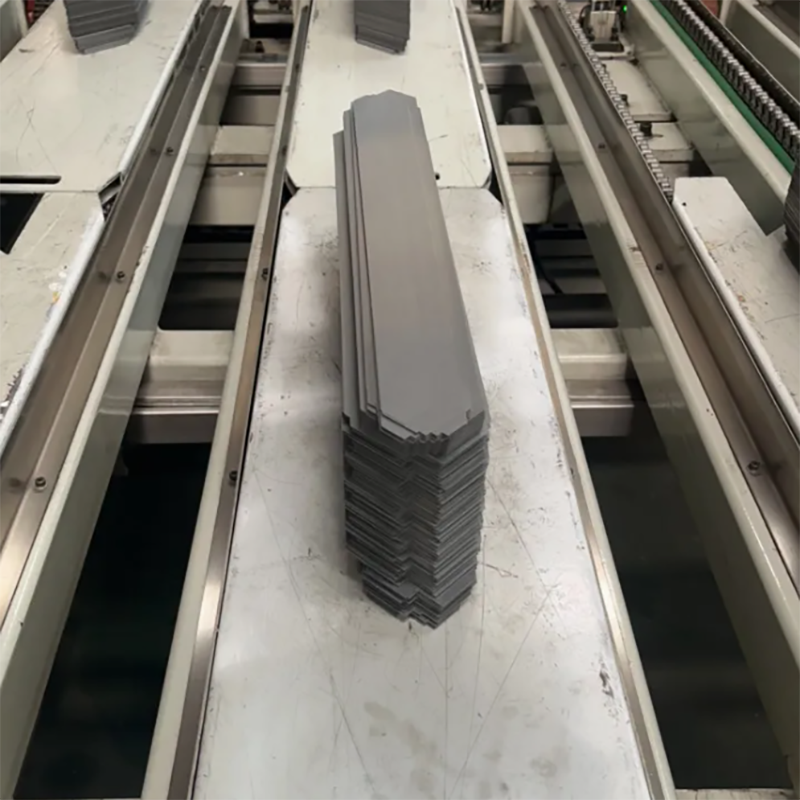

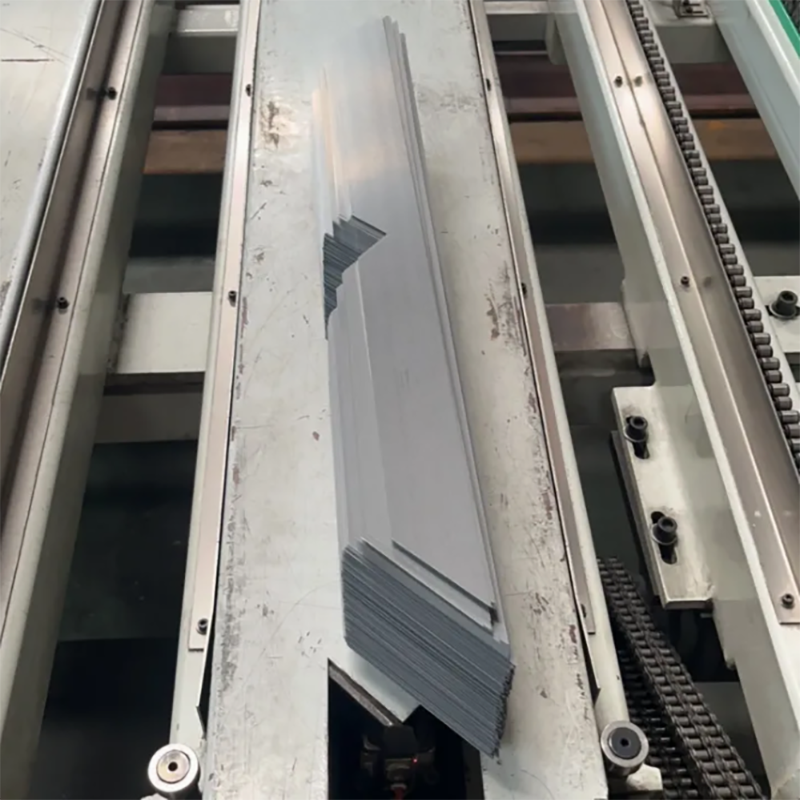

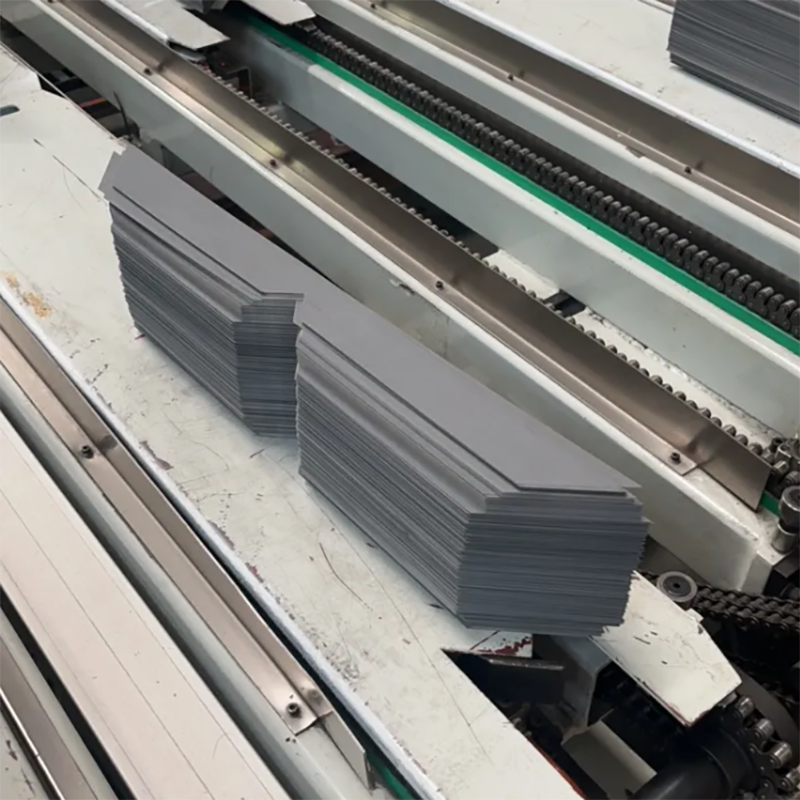

| Transformer Lamination | OEM(According to Drawing) |
| Specification | 1000*1000*600mm |
| Origin | China |
| Production Capacity | 30000tons/Month |
FAQ
1. Which products can we provide?
We offer CRGO mother coils, slit coils, transformer lamination, and OEM transformer cores.
2. Who are we?
Established in 2000, we are a pioneering force in CRGO silicon steel products in China, and the exclusive user of Bao-steel. Our joint laboratory with Bao-steel underscores our commitment to quality and innovation.
3.How can we guarantee quality?
We strictly adhere to ISO9001:2015 standards. Our engineers conduct meticulous calculations before order placement, and we rigorously test each product post-production to ensure peak quality before dispatch.
4. Why should you buy from us and not from other suppliers?
With over two decades of expertise in producing transformer cores, we leverage advanced German slitting and cutting systems, including the Georg 800 cross-cutting E-stack machine. Our impressive annual production capacity exceeds 100,000 tons.
