Magnetic Material Selection and Its Impact on Transformer Core Quality
Core Geometry, Lamination, and Flux Control in a Transformer Core
Core Losses: Hysteresis, Eddy Currents, and How to Minimize Them
Thermal Behavior and Mechanical Stability of a Transformer Core
Manufacturing Precision and Its Influence on Transformer Core Reliability
Application-Specific Optimization: Why the “Best” Transformer Core Depends on Use Case
A transformer’s performance, efficiency, reliability, and lifespan are all fundamentally governed by one critical component: the Transformer Core. While windings, insulation, and cooling systems all contribute to overall operation, the core determines how effectively magnetic energy is transferred from primary to secondary circuits. A good transformer core is not merely a block of magnetic material; it is a precisely engineered structure designed to balance magnetic permeability, energy losses, thermal stability, noise control, and long-term durability under electrical and mechanical stress.
Understanding what makes a good transformer core requires looking beyond basic magnetic behavior and evaluating real-world operating conditions such as load variation, temperature rise, frequency, voltage stress, and manufacturing tolerances. This article breaks down the real performance drivers of a high-quality transformer core, focusing on measurable characteristics, material science choices, geometric optimization, and application-driven design.

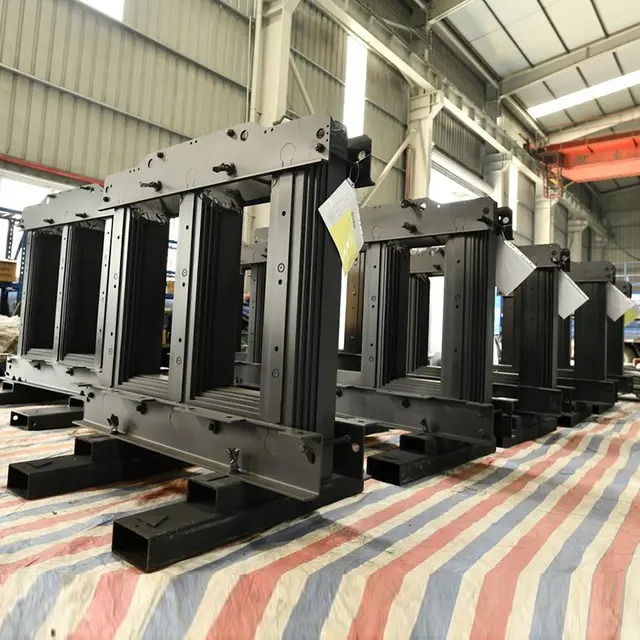

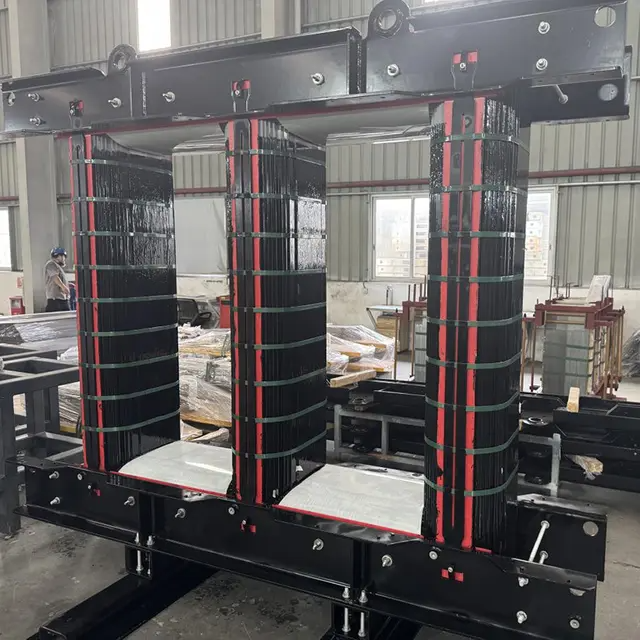

The Transformer Core is the magnetic backbone of the transformer. Its fundamental role is to provide a low-reluctance path for magnetic flux, enabling efficient electromagnetic induction between windings. The better the core guides magnetic flux, the higher the efficiency and the lower the unwanted losses.
A good transformer core directly influences:
Voltage regulation
Energy efficiency
No-load losses
Thermal behavior
Acoustic noise
Saturation limits
From an electromagnetic standpoint, the transformer core determines how much magnetic energy can be transferred without entering saturation. Once saturation occurs, magnetizing current increases sharply, causing overheating, waveform distortion, and potential system failure. Therefore, a good core must maintain linear magnetic behavior under its rated operating conditions.
At practical operating levels, the core must also minimize reactive power draw. A poorly designed transformer core demands high magnetization current, which reduces power factor and increases upstream system losses. This directly affects utility costs, grid stability, and transformer lifespan.
A good transformer core also ensures predictable behavior across a wide temperature range. As temperature rises, magnetic permeability falls. High-quality core materials and optimized geometry ensure that performance degradation remains controlled and reversible across thermal cycles.
Material choice is the single most decisive factor in determining transformer core quality. Different magnetic materials offer radically different performance in permeability, saturation flux density, core losses, and thermal stability.
| Material Type | Relative Permeability | Core Losses | Saturation Flux Density | Typical Applications |
|---|---|---|---|---|
| Grain-Oriented Silicon Steel | Very High | Low | High | Power and distribution transformers |
| Non-Oriented Silicon Steel | Medium | Medium | High | Rotating machines and small transformers |
| Ferrite | Very High (at high frequency) | Very Low | Low | SMPS, RF transformers |
| Amorphous Metal | Extremely High | Extremely Low | Medium | Energy-efficient distribution transformers |
| Nanocrystalline Alloy | Ultra High | Ultra Low | Medium | Precision power electronics |
A good transformer core uses a material matched precisely to its operating frequency and power level. For low-frequency grid transformers (50/60 Hz), grain-oriented silicon steel remains dominant because of its excellent balance of low hysteresis loss and high saturation flux density. Amorphous and nanocrystalline cores further reduce losses but at higher cost and increased mechanical brittleness.
Ferrite cores dominate high-frequency switching applications because eddy current losses within metallic cores would become unacceptable above several kilohertz. However, ferrites saturate easily and cannot handle high flux densities, making them unsuitable for large power transformers.
What defines a good material choice is not simply low loss—it is loss relative to power density, thermal limits, and economic constraints. The best transformer core material is always selected through this multi-dimensional tradeoff, not in isolation.
Even the best magnetic material fails if the core geometry is poorly designed. The geometry of a transformer core dictates how evenly flux is distributed, how tightly windings couple magnetically, and how efficiently heat can be extracted.
Cross-sectional area
Magnetic path length
Window area for windings
Joint configuration (butt joint, step-lap, mitred)
Flux density uniformity
Laminated cores dominate AC transformer design because laminations suppress eddy current losses by breaking conductive paths perpendicular to flux flow. A good transformer core uses thin, uniformly insulated laminations that minimize circulating currents without sacrificing structural integrity.
Step-lap core joints further reduce localized flux crowding at joints, lowering noise and core loss while improving magnetizing current behavior. Poorly designed joints cause flux bottlenecks that trigger localized heating and increased audible hum.
Toroidal cores offer superior flux containment and magnetic coupling due to their continuous magnetic path. A well-made toroidal transformer core produces dramatically lower stray fields and noise compared to stacked E-I cores. However, toroids require more complex winding processes and are sensitive to DC bias.
A good transformer core always achieves flux uniformity across its cross-section, ensuring that no region is driven into saturation while others remain underutilized.
Core losses define a large portion of transformer inefficiency. A truly good transformer core minimizes both hysteresis loss and eddy current loss across its entire operating range.
| Loss Type | Root Cause | Frequency Dependency | Primary Control Method |
|---|---|---|---|
| Hysteresis Loss | Magnetic domain reversal | Linear | Low-coercivity materials |
| Eddy Current Loss | Induced circulating currents | Quadratic | Thin laminations, high resistivity |
Hysteresis loss depends entirely on the magnetic softness of the material. A good transformer core uses materials with low coercive force and narrow hysteresis loops, meaning less energy is lost during each magnetization cycle.
Eddy current loss results from conductive materials exposed to time-varying magnetic fields. The solution is geometric rather than chemical: thin laminations, surface insulation coatings, and high-resistivity alloys. In amorphous and nanocrystalline cores, the ribbon thickness is so small that eddy currents are almost eliminated entirely.
A good transformer core also minimizes additional stray losses caused by leakage flux entering structural components like clamp frames and tank walls. This is achieved through flux shunts, magnetic shields, and symmetrical coil-core placement.
Low core loss is not simply about energy savings—it directly impacts:
No-load power consumption
Temperature rise
Insulation aging rate
Long-term transformer reliability
Magnetic performance alone does not define a good transformer core. Thermal management and mechanical integrity under decades of operational stress are equally important.
When a transformer operates under load, the core experiences:
Continuous thermal cycling
Magnetostriction-induced vibration
Electromagnetic forces during short-circuit events
Mechanical stress from clamping systems
A good transformer core must maintain precise lamination alignment under these forces. Any looseness increases vibration, acoustic noise, and eddy current losses at lamination interfaces. Over time, this leads to insulation breakdown and progressive performance decay.
Thermal conductivity of the core material directly affects how efficiently heat can be removed. Amorphous cores, for example, exhibit lower thermal conductivity than silicon steel, requiring careful cooling system design despite their low electrical losses.
A well-designed transformer core operates below its thermal knee point, where permeability begins to collapse rapidly. This ensures stable magnetizing current, predictable voltage regulation, and extended insulation life.
Mechanical vibration from magnetostriction is also a major source of transformer hum. A good transformer core minimizes this using:
Low-magnetostriction materials
Precision step-lap joints
Uniform clamping pressure
The best core material and design can be completely undermined by poor manufacturing quality. Precision in cutting, stacking, insulation coating, and joint formation directly determines whether the theoretical performance becomes real-world performance.
Critical manufacturing factors for a good transformer core include:
Burr-free lamination cutting to prevent shorted layers
Uniform interlaminar insulation
Accurate stacking factor
Precise joint alignment
Controlled annealing for stress relief
Residual mechanical stress from punching and cutting severely degrades magnetic performance by increasing hysteresis loss. High-quality transformer cores undergo controlled annealing to restore magnetic domain structure and remove strain-induced losses.
The stacking factor determines how much of the core cross-section is actually magnetic material versus air gaps and insulation. A low stacking factor reduces effective flux capacity and increases core losses. A good transformer core achieves a high stacking factor without compromising insulation integrity.
Manufacturing quality also controls repeatability. A good transformer core is not only efficient—it is consistent across thousands of production units.
There is no universal “best” transformer core—only the best core for a specific electrical, thermal, and economic context. A core optimized for a utility power transformer is completely different from one designed for a high-frequency SMPS converter.
| Application | Frequency | Power Level | Core Priority |
|---|---|---|---|
| Utility Distribution | 50/60 Hz | High | Low hysteresis, high saturation |
| Renewable Energy Inverters | Variable | Medium–High | Flux linearity, thermal stability |
| Medical Power Supplies | High (kHz) | Low–Medium | Low eddy loss, precise control |
| Audio Transformers | Low–Medium | Low | Low distortion, low leakage |
| EV Charging Systems | Medium–High | High | Thermal robustness, fast response |
A good transformer core in an EV charger must tolerate fast load dynamics and high thermal cycling. In contrast, a grid transformer core prioritizes ultra-low no-load losses and 30–40 years of continuous service.
The defining trait of a good transformer core is therefore not absolute performance—it is correct optimization under real-world constraints.
A good transformer core is the result of balance, not extremes. It balances magnetic efficiency with thermal stability, mechanical durability with manufacturing precision, and performance with cost. It provides a low-reluctance magnetic path without saturation, minimizes hysteresis and eddy current losses, maintains structural integrity under vibration and thermal cycling, and performs consistently across decades of service.
What makes a good transformer core is ultimately its ability to deliver predictable, efficient, and reliable magnetic performance under its specific operating conditions. No single material, geometry, or process defines excellence by itself. Excellence emerges only when material science, electromagnetic design, mechanical engineering, and manufacturing control all align toward the same performance target.
1. What is the most important property of a transformer core?
The most important property of a transformer core is high magnetic permeability combined with low core loss. High permeability ensures efficient flux transfer at low magnetizing current, while low loss minimizes heat generation and improves energy efficiency.
2. Why are laminated cores used instead of solid cores?
Laminated cores dramatically reduce eddy current losses by breaking up circulating current paths within the magnetic material. Solid cores would generate excessive heat and inefficiency under AC conditions.
3. Are amorphous transformer cores always better than silicon steel cores?
Amorphous transformer cores have significantly lower core losses, especially at no-load conditions. However, they are mechanically brittle, costlier, and have lower saturation flux density, making silicon steel preferable for many high-power applications.
4. How does transformer core quality affect noise?
Core quality directly influences acoustic noise through magnetostriction and vibration control. High-quality materials, step-lap joints, and precise clamping greatly reduce audible hum.
5. Does a larger transformer core always mean better performance?
Not necessarily. While a larger core can handle higher flux without saturation, performance depends on material properties, geometry optimization, and loss control, not size alone.
