With the continuous development of transformer technology, clamps are also showing new development trends. In terms of materials, more high-strength, lightweight new alloy materials will be used to reduce the weight of clamps while improving their strength and corrosion resistance. In terms of structure, the design will be further optimized, and more reasonable stress structures will be adopted to reduce material consumption and improve the economy and reliability of clamps. In terms of manufacturing processes, automated and intelligent production technologies such as robot welding and precision stamping will be introduced to improve production efficiency and product accuracy, meeting the higher requirements of large-scale and high-performance transformers for clamps.
The Safety Protection Role of Transformer Clamps

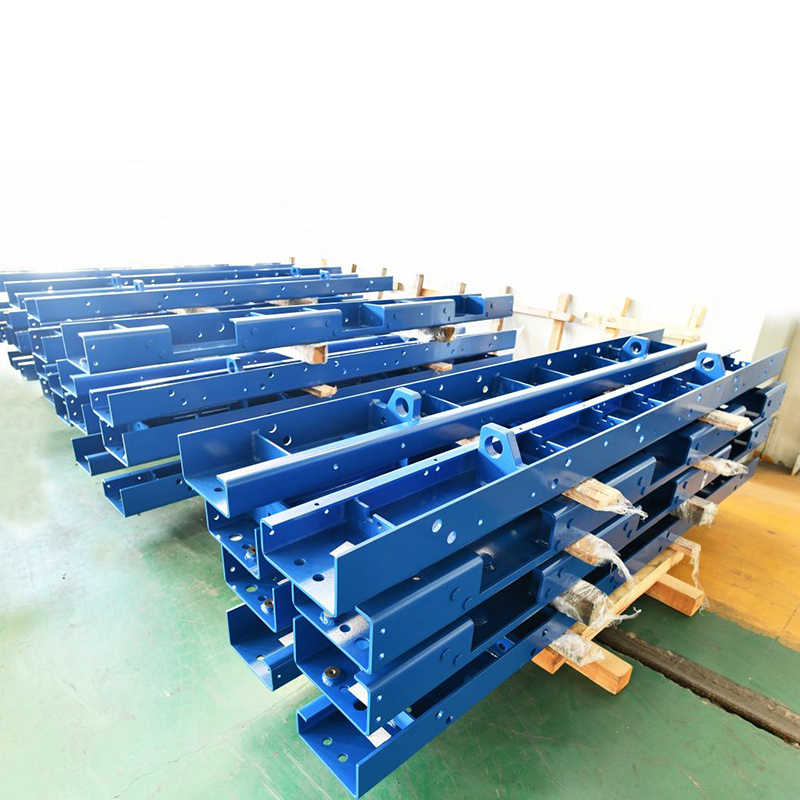

The role of transformer clamps in safety protection is far more complex and critical than it appears on the surface. In terms of core structural stability, it is not simply "clamping" the iron core and windings, but through precisely calculated distribution of stress points, controlling the gap between iron core laminations within 0.1 millimeters. This tight fixing method can effectively avoid inter-lamination friction caused by vibration of the iron core in the alternating magnetic field, reduce wear of the insulating paint film, thereby lowering the risk of short circuits. When a transformer encounters a sudden short circuit, the windings will instantly generate electromagnetic force dozens of times the rated value. At this time, the frame structure of the clamp acts like "armor" - taking the clamp of a large transformer as an example, its main load-bearing beam made of thick-walled channel steel can withstand radial impact force up to 500kN. With densely distributed reinforcing ribs, it can evenly disperse the force to the entire clamp frame, preventing insulation layer tearing caused by radial bulging or axial displacement of the windings.
In terms of electrical safety protection, the grounding design of the clamp has hidden ingenuity. It is usually connected to the transformer shell through a copper braided belt with a cross-sectional area of not less than 25mm², and the grounding resistance is strictly controlled below 4Ω. This low-impedance grounding path can conduct static electricity or induced voltage to the ground within 10 milliseconds, avoiding a potential difference exceeding 50V between the clamp and the iron core, thereby preventing electric sparks generated by air breakdown from damaging insulating materials. In addition, the surface of clamps for some high-voltage transformers is sprayed with an epoxy powder insulating coating with a thickness of 0.2-0.3mm. This coating can not only withstand temperatures up to 150℃, but also resist corrosion from acidic substances in transformer oil. At the same time, its volume resistivity exceeds 10¹⁴Ω·cm, which can effectively block the loop formed by stray current between the clamp and the oil tank, further reducing the risk of local overheating.
