Why Transformer Core Material Selection Defines Transformer Performance
Electrical Steel as the Industry Standard Transformer Core Material
Amorphous Metal Cores and Their Role in High-Efficiency Transformers
How to Select the Right Transformer Core Material for Your Design

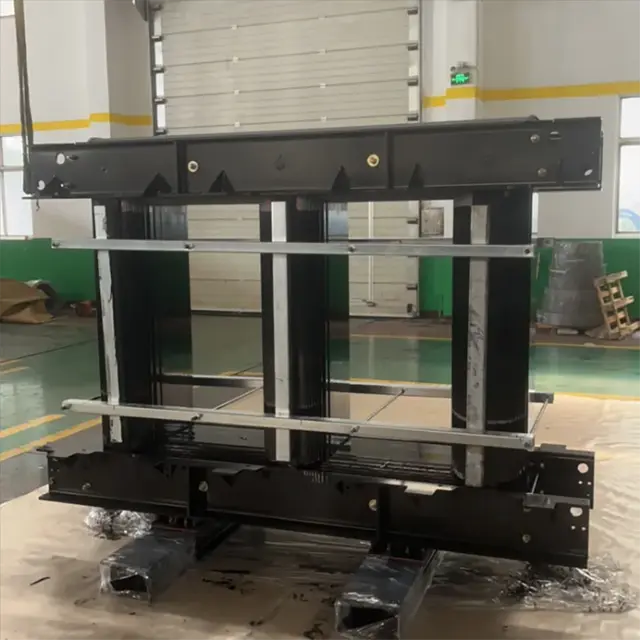

Transformer performance is fundamentally governed by the behavior of its core material. The Transformer Core dictates magnetic flux flow, energy losses, thermal stability, acoustic noise, size, and overall efficiency. In modern power electronics, renewable energy systems, electric vehicles, and grid-scale infrastructure, transformer designers face growing pressure to optimize efficiency while reducing size and heat generation.
Exploring different core materials in transformer design is no longer a theoretical exercise—it is a practical necessity driven by energy efficiency regulations, operating frequency demands, and cost-performance tradeoffs. Each transformer core material offers a distinct magnetic profile, manufacturing complexity, and operational advantage. Understanding these differences enables engineers to make informed design decisions that directly affect reliability, power density, and lifecycle cost.
The Transformer Core is the magnetic heart of the transformer, and its material selection defines how efficiently electrical energy transfers from primary to secondary windings. Core material directly impacts:
Core loss (hysteresis + eddy current)
Saturation flux density
Thermal stability
Frequency range
Noise and vibration
Physical size and weight
A poor material choice results in excessive heat, audible hum, reduced efficiency, and shortened operational life. Conversely, optimized material selection enables compact designs with higher power density and lower standby loss.
The relationship between magnetic domains and alternating current introduces two dominant loss mechanisms:
Hysteresis Loss – Energy required to flip magnetic domains during each AC cycle
Eddy Current Loss – Circulating currents within the core caused by changing magnetic flux
Material resistivity, grain orientation, and lamination thickness directly determine the severity of these losses. High-frequency transformers require materials with very low eddy current formation, while power-frequency transformers depend heavily on silicon steel optimization.
Every Transformer Core material has a maximum usable flux density before saturation occurs. When saturation is reached:
Core permeability collapses
Magnetizing current spikes
Overheating becomes inevitable
This makes material saturation flux density a fundamental constraint in transformer size optimization and overload tolerance.
| Core Property | Impact on Transformer Design |
|---|---|
| Permeability | Affects magnetizing current |
| Saturation Flux | Determines max voltage handling |
| Resistivity | Governs eddy losses |
| Thermal Stability | Defines safe operating range |
| Mechanical Strength | Impacts vibration & noise |
The entire transformer design framework begins with the core material—windings, insulation, cooling, and housing all adapt around it.
Electrical steel remains the most widely deployed Transformer Core material for power-frequency transformers. It dominates distribution and transmission class transformers due to its unmatched balance of cost, availability, and performance at 50/60 Hz.
Grain orientation significantly improves magnetic permeability along the rolling direction, making grain-oriented electrical steel (GOES) the preferred option for power transformers and large distribution units. Non-grain-oriented (NGO) steel, by contrast, is used in rotating machines and small transformers where multi-directional flux is present.
| Property | Grain-Oriented Steel | Non-Grain-Oriented Steel |
|---|---|---|
| Magnetic Flux Direction | Single-direction optimized | Multi-directional |
| Core Loss | Very low at 50–60 Hz | Higher |
| Typical Use | Power transformers | Motors, small transformers |
| Cost | Higher | Lower |
Silicon (typically 2–3.5%) increases resistivity and reduces eddy current formation. Modern laser-scribed GOES further minimizes domain wall movement, cutting hysteresis loss by noticeable margins.
Despite its dominance, electrical steel is not ideal beyond low-frequency operation:
Eddy losses rise rapidly above 400 Hz
Core weight becomes prohibitive in compact electronics
Standby losses in grid networks remain substantial
These weaknesses motivate the exploration of alternative Transformer Core materials for next-generation applications.
Amorphous metal has become one of the most disruptive Transformer Core materials in the efficiency-driven transformer market. Unlike crystalline steel, amorphous alloys possess a non-ordered atomic structure that dramatically reduces hysteresis loss.
Amorphous cores typically deliver:
Up to 70% lower core loss than silicon steel
High electrical resistivity
Exceptional performance under light-load conditions
These benefits make them especially valuable in distribution transformers that remain energized 24/7.
Amorphous magnetic material is produced as ultra-thin ribbons (~0.025 mm), which limits stacking geometry and increases manufacturing complexity. Mechanical brittleness also introduces challenges during cutting and assembly.
| Property | Electrical Steel | Amorphous Metal |
|---|---|---|
| Core Loss | Moderate | Extremely Low |
| Saturation Flux | High | Lower |
| Mechanical Strength | Strong | Brittle |
| Initial Cost | Lower | Higher |
| Lifetime Energy Cost | Higher | Much Lower |
Amorphous Transformer Core designs are widely adopted in:
Utility distribution networks
Renewable energy step-up transformers
Smart grid infrastructure
Low-noise urban substations
Their reduced no-load loss translates directly into measurable energy savings across national grids.
When switching frequencies rise into the kilohertz and megahertz range, traditional steel becomes unusable. Ferrite emerges as the dominant Transformer Core material for high-frequency power electronics.
Ferrite is a ceramic magnetic material featuring:
Extremely high electrical resistivity
Very low eddy current loss
Stable permeability at high switching speeds
These characteristics make ferrite indispensable in switch-mode power supplies (SMPS), RF transformers, and DC-DC converters.
Ferrites are generally classified into:
MnZn Ferrite – High permeability, used below 1 MHz
NiZn Ferrite – Higher resistivity, used at higher frequencies
Each formulation optimizes a specific balance between permeability, frequency response, and loss.
While ferrite excels electrically, it also imposes mechanical and saturation limitations:
Very low saturation flux density
Brittle ceramic structure
Limited overload tolerance
As a result, ferrite cores require precise air-gap control and conservative flux design margins.
| Parameter | Ferrite | Electrical Steel |
|---|---|---|
| Frequency Range | High (kHz–MHz) | Low (50–400 Hz) |
| Saturation Flux | Low | High |
| Eddy Loss | Extremely Low | Moderate |
| Mechanical Strength | Brittle | Very Strong |
Ferrite transforms the possibilities of compact power electronics but demands disciplined flux density control.
Powder-based Transformer Core materials represent an engineering middle ground between ferrite ceramics and metal laminations. These cores are produced by compressing insulated magnetic powder particles into solid shapes.
Powdered iron cores naturally contain distributed air gaps between particles. This structural feature:
Dramatically increases linearity
Prevents sudden saturation
Enhances DC bias tolerance
This makes powdered iron especially valuable in inductors and chokes that experience combined AC and DC excitation.
Advanced soft magnetic composites extend powdered iron technology using insulated iron particles and precision molding. These materials allow:
3D flux paths
Low eddy losses
High mechanical design flexibility
However, both powdered iron and SMC cores generally exhibit higher hysteresis loss than ferrites at very high frequencies.
Power factor correction (PFC) inductors
Automotive power electronics
Motor drive chokes
Energy storage inductors
Their thermal stability and bias tolerance give them an edge in high-stress electrical environments.
The future of Transformer Core material science is being shaped by energy efficiency mandates, electrification megatrends, and wide-bandgap semiconductors. Traditional materials alone can no longer meet the performance demands of next-generation power systems.
Nanocrystalline alloys combine high saturation flux with ultra-low core loss, bridging the performance gap between amorphous metal and silicon steel. Their advantages include:
Extremely low coercivity
High permeability
Excellent temperature stability
Smaller transformer footprints
They are increasingly adopted in:
High-frequency isolation transformers
EV onboard chargers
Aerospace power systems
Research into 3D-printed magnetic cores aims to free designers from lamination constraints. This allows:
Optimized flux paths
Reduced leakage
Integrated cooling channels
Increased power density
Environmental regulations are accelerating the development of recyclable alloys and low-carbon manufacturing processes for Transformer Core production. Material lifecycle impact is becoming a design variable alongside electrical performance.
Selecting the optimal Transformer Core material requires balancing electrical, thermal, mechanical, and economic constraints rather than focusing on a single parameter.
Operating frequency
Rated voltage and flux density
Load profile (continuous vs intermittent)
Thermal environment
Size and weight constraints
Efficiency targets
Regulatory efficiency standards
| Application Type | Recommended Core Material |
|---|---|
| Utility Power Transformers | Grain-Oriented Electrical Steel |
| High-Efficiency Distribution | Amorphous Metal |
| Switch-Mode Power Supplies | Ferrite |
| DC-Biased Inductors | Powdered Iron |
| EV Chargers & Aerospace | Nanocrystalline |
The most efficient transformer design emerges when core material, winding configuration, and thermal strategy are optimized as a unified system rather than in isolation.
Exploring different core materials in transformer design reveals that no single Transformer Core material dominates all applications. Each material serves a specific electrical domain shaped by frequency, loss tolerance, flux density, geometry, and thermal expectations.
Electrical steel defines legacy power infrastructure. Amorphous metal redefines energy efficiency. Ferrite enables high-frequency power electronics. Powdered iron supports biased energy storage. Nanocrystalline alloys are shaping the future of compact, ultra-efficient transformers.
For engineers, manufacturers, and system designers, mastering transformer core material selection is no longer optional—it is the foundation of competitive, compliant, and future-ready transformer performance.
1.What is the most commonly used Transformer Core material?
Electrical steel, especially grain-oriented silicon steel, remains the most widely used Transformer Core material for power-frequency transformers due to its cost-performance balance.
2.Why is amorphous metal used in energy-efficient transformers?
Amorphous metal delivers dramatically lower core loss, making it ideal for continuously energized distribution transformers where idle energy loss dominates total operating cost.
3.Which Transformer Core material is best for high-frequency design?
Ferrite is the preferred Transformer Core material for high-frequency switch-mode applications due to its extremely low eddy current loss.
4.Are nanocrystalline cores replacing traditional materials?
Nanocrystalline cores are rapidly gaining adoption in high-performance sectors but have not yet replaced electrical steel or ferrite in mainstream applications.
5.How does operating frequency influence Transformer Core selection?
As frequency increases, designers must shift from steel to ferrite or nanocrystalline materials to control eddy current and hysteresis loss.
