Can A Transformer Work Without A Core?

Contents

1. Introduction

2. The Role of the Transformer Core in Electromagnetic Energy Transfer

3. Can a Transformer Work Without a Core? The Physics-Based Answer

4. Air-Core Transformers vs Core-Type Transformers

5. Efficiency, Power Loss, and Heat Without a Transformer Core

6. Real-World Applications Where Coreless Transformers Make Sense

7. Design Challenges and Engineering Limitations Without a Transformer Core

8. When a Transformer Core Is Absolutely Essential

9. Conclusion

10. FAQ

Introduction

The Transformer Core is widely recognized as the backbone of modern transformer design, responsible for guiding magnetic flux and enabling efficient voltage conversion. Yet, in both academic theory and niche industrial applications, engineers continue to explore whether a transformer can operate without this foundational component. Understanding this possibility requires a precise look at electromagnetic principles, efficiency trade-offs, thermal behavior, and real-world usability. This article delivers a deeply technical yet practical explanation of whether a transformer truly functions without a core, what is gained or lost in the process, and when such designs are actually viable.

The Role of the Transformer Core in Electromagnetic Energy Transfer

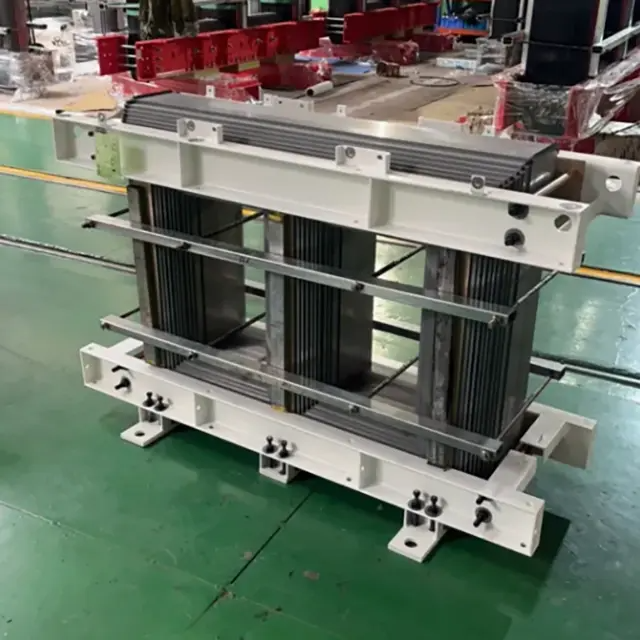

The Transformer Core serves as the primary magnetic pathway that links the primary and secondary windings. When alternating current enters the primary coil, it generates a changing magnetic field. The Transformer Core concentrates and directs this magnetic field so that it efficiently passes through the secondary winding, inducing voltage through electromagnetic induction.

Without a Transformer Core, the magnetic field disperses freely into surrounding air. This dispersal dramatically reduces magnetic coupling, which in turn weakens induced voltage on the secondary side. The core also reduces magnetic reluctance, a property similar to electrical resistance but for magnetic fields. Ferromagnetic materials such as silicon steel, ferrite, or amorphous alloys dramatically lower reluctance and enhance energy transfer.

Beyond flux guidance, the Transformer Core improves power density, allowing transformers to deliver higher power in a compact size. It also stabilizes magnetic behavior under varying load conditions. Without this stabilizing structure, output voltage becomes unstable, efficiency drops, and electromagnetic interference increases. From both theoretical and practical perspectives, the Transformer Core is the single most critical enabler for commercially viable transformer performance.

Can a Transformer Work Without a Core? The Physics-Based Answer

From a purely physical and theoretical standpoint, a transformer can work without a Transformer Core—but only in a very limited sense. If two coils are placed close together in free space (air), energy can still be transferred via mutual inductance. This configuration is known as an air-core transformer. However, the absence of a Transformer Core radically alters performance characteristics.

In a coreless arrangement, most of the magnetic flux leaks into surrounding space rather than coupling tightly with the secondary winding. This leads to extremely low energy transfer efficiency. To compensate for poor coupling, air-core designs require either extremely high frequencies, very large coil sizes, or very small load demands.

The fundamental equation for transformer voltage ratio still applies:

V1V2=N1N2\frac{V_1}{V_2} = \frac{N_1}{N_2}V2V1=N2N1

However, without a Transformer Core, flux density is drastically reduced, making the induced voltage weak and unstable. This means that while energy transfer is physically possible, practical power transmission at low frequencies becomes inefficient to the point of impracticality.

Therefore, the answer is nuanced: a transformer can function without a core in principle, but not in most industrial, commercial, or power-grid environments.

Air-Core Transformers vs Core-Type Transformers

The contrast between air-core transformers and those with a Transformer Core reveals why coreless designs are rarely used for power delivery. The table below summarizes key performance differences:

Air-core designs excel only where high frequencies eliminate the need for a Transformer Core to concentrate flux. Radio-frequency systems, wireless charging pads, and Tesla coils represent the common use cases. For grid power, motor drives, and industrial converters, the absence of a Transformer Core would make systems inefficient, bulky, and thermally unstable.

The Transformer Core fundamentally reshapes the magnetic field into a closed-loop pathway, preventing waste and dramatically improving power density.

Efficiency, Power Loss, and Heat Without a Transformer Core

One of the most severe consequences of eliminating the Transformer Core is the surge in power loss. In core-based transformers, losses are mainly divided into copper losses (I²R) and core losses (hysteresis and eddy currents). When the Transformer Core is removed, copper losses dominate due to the massive increase in required current and number of windings needed to compensate for weak magnetic coupling.

Thermal behavior worsens significantly without a Transformer Core. Because efficiency plummets, more input power converts into waste heat instead of usable output energy. To prevent voltage collapse, designers often increase current, which exponentially increases resistive heating.

Additionally, a Transformer Core helps stabilize magnetic saturation limits. In air-core systems, saturation is not a concern, but efficiency collapse replaces it as the primary limitation. Heat dissipation becomes so demanding that large passive cooling systems or forced air cooling are required even for relatively small power levels.

This makes air-core transformers unsuitable for continuous, high-load operation. The Transformer Core is therefore not just an efficiency enhancement—it is the primary brake on thermal runaway in practical transformer systems.

Real-World Applications Where Coreless Transformers Make Sense

Despite their inefficiency for general power use, there are specific environments where transformers without a Transformer Core are not only viable but preferred. These applications rely on high-frequency operation and low power transmission.

Wireless charging systems use air-core coupling because physical electrical contact is impossible. At frequencies in the tens to hundreds of kilohertz, magnetic coupling becomes strong enough over small distances to power smartphones and medical implants.

Tesla coils intentionally avoid a Transformer Core to generate extremely high voltages rather than efficient power delivery. The absence of a core prevents saturation at extreme flux levels, enabling spectacular voltage amplification.

Radio-frequency circuits, antenna matching networks, and induction heating systems also exploit coreless transformer principles when precise frequency control matters more than raw efficiency.

These use cases share three defining traits:

1. High operating frequency

2. Short transmission distance

3. Low or specialized power demands

Outside these conditions, the Transformer Core remains irreplaceable.

Design Challenges and Engineering Limitations Without a Transformer Core

Designing any transformer without a Transformer Core introduces extreme engineering difficulty. First, mechanical structure becomes a major concern. Large coil diameters required for adequate inductance lead to structural deformation under electromagnetic forces.

Second, electromagnetic interference increases drastically. Without a closed-core magnetic path, stray fields radiate outward, disrupting nearby electronics and reducing system stability. Shielding can mitigate this problem but adds material cost and size.

Third, scaling problems become unavoidable. Increasing output power without a Transformer Core requires disproportionate increases in wire thickness, coil diameter, and spacing. The device becomes impractically large long before reaching industrial power levels.

Lastly, control accuracy deteriorates. Load changes directly affect coupling efficiency. Without the stabilizing influence of a Transformer Core, voltage regulation becomes unpredictable under variable loads.

These limitations explain why air-core transformers remain confined to niche technical environments rather than mainstream power infrastructure.

When a Transformer Core Is Absolutely Essential

In power transmission, distribution networks, industrial motor drives, renewable energy systems, and data centers, the Transformer Core is not optional—it is mandatory. These systems require:

• High efficiency

• High voltage stability

• High power density

• Low electromagnetic interference

• Continuous thermal reliability

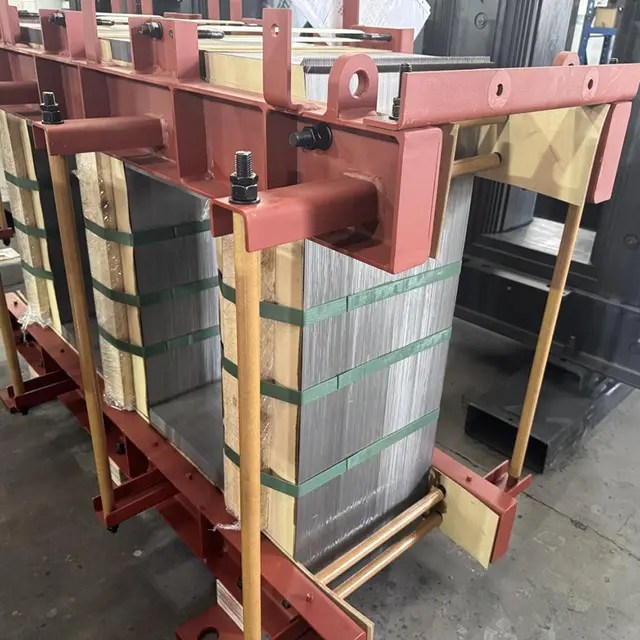

None of these requirements can be met without a Transformer Core at low or medium operating frequencies. Grid transformers delivering megawatts of power depend entirely on laminated silicon steel or amorphous metal cores to prevent catastrophic inefficiency and failure.

Even modern high-frequency switch-mode power supplies rely on ferrite Transformer Core materials precisely engineered to optimize efficiency at elevated frequencies. Eliminating the core in these environments would collapse both performance and safety margins.

Conclusion

A transformer can technically function without a core, but only under narrow and specialized conditions where efficiency, size, and power stability are secondary to frequency performance or physical isolation. The Transformer Core remains the defining component that transforms electromagnetic theory into practical, scalable, and efficient power conversion. For nearly every industrial, commercial, and grid-based application, removing the Transformer Core would render the transformer unusable. Air-core transformers occupy valuable niches, but they will never replace core-based transformers in mainstream electrical engineering.

FAQ

Q1: Can a transformer without a Transformer Core be used for household power?
No. Household power operates at low frequencies (50–60 Hz), where air-core designs are extremely inefficient.

Q2: Why does high frequency make coreless transformers possible?
Higher frequency increases rate of flux change, strengthening induction even without a Transformer Core.

Q3: Are air-core transformers safer?
They avoid magnetic saturation but introduce higher electromagnetic radiation and heat risks.

Q4: Do wireless chargers use Transformer Cores?
They rely on loosely coupled air-core inductive coils, not traditional cores.

Q5: Will future materials eliminate the need for Transformer Cores?
While materials improve, the fundamental physics that make Transformer Cores essential remain unchanged.
